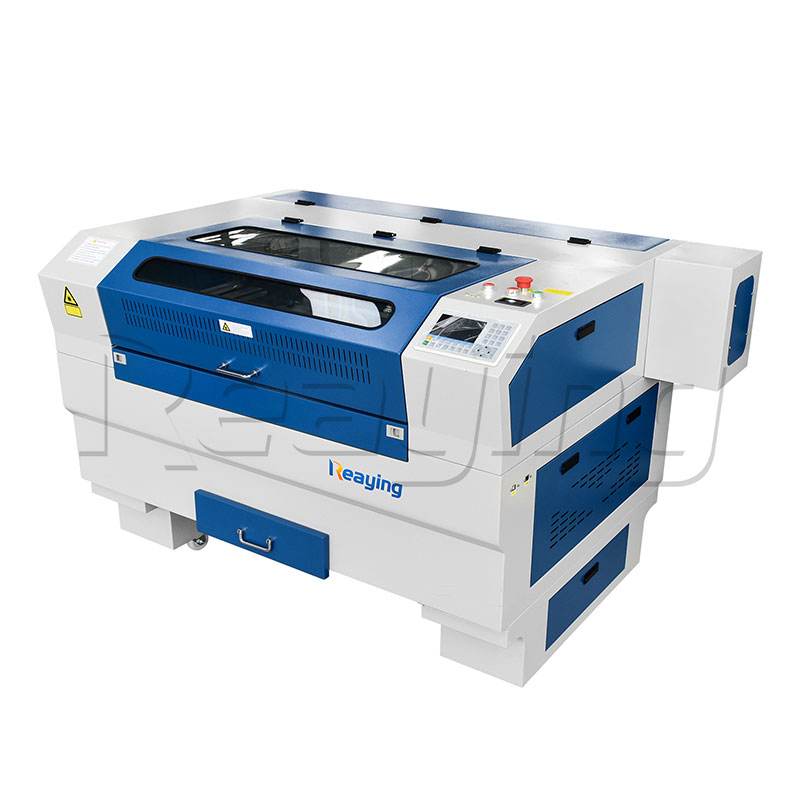

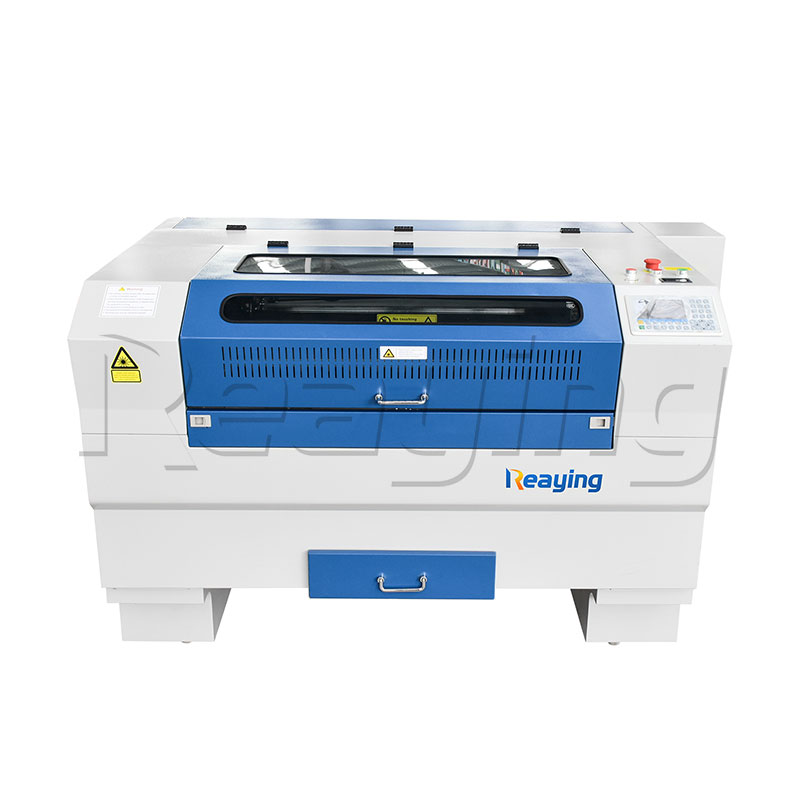

RY-L640 Wood Laser Engraving Machine
The RY-L640 wood laser engraving machine is a compact and cost-effective CO2 laser equipment specially designed for wood and bamboo processing. It performs high-precision engraving, cutting, hollowing and logo marking on solid wood, plywood, bamboo products, wooden crafts and gifts. With a small footprint, low energy consumption and simple operation, it is the best choice for small workshops, craft stores and personalized custom shops. It can also process plastic, rubber, paper and other non-metal materials, with stable structure, low failure rate and easy maintenance.
Model:
RY-L640
Function:
Engraving & Cutting
Input Voltage:
Custom Made
Laser Power:
100W / 150W
Laser Tube:
RECI
Working Area:
600*400mm
Core Features
High-Precision Laser Head
Built-in high-quality focus lens, optional auto-focus function, red light pointer for accurate positioning. Double laser head configuration is available to improve working efficiency.
Working table
Aluminum working table, Fence blade working table optional
User-Friendly Control System
Adopts upgraded RDC6445G control system with LCD touch panel, supports offline working, multi-language (English, Russian, Spanish, French, Portuguese, etc.), dust-proof design, easy to learn and operate.
High-Quality CO2 Laser Tube
Equipped with high-quality RECI or EFR CO2 laser tube (100W / 150W optional), the machine delivers stable power output, long service life and consistent processing performance for long-term production.
Control cabinet
We use import good quality parts, core parts install position.
Servo and stepper motor optional
Stable Machine Body
Thickened steel structure ensures high rigidity and stability. The durable body reduces vibration and ensures high processing accuracy even in long-time working.
Free parts
1). Laser Engraving software Package (English Version). 2). CW-3000 or CW5200 water chiller. 3). Air exhaust fan. 4). Air Pump. 5). Communication cable and USB cable. 6). 3 Reflect optics (installed in the machine). 7). 1 Focus optics (installed in the machine). 8). 1 Laser tube (installed in the machine). 9). Tool box
Optional parts
Rotary device for round object engraving Electric lift table, easy to adjust
Technical Parameters
Model | RY-L640 |
|---|---|
Function | Engraving & Cutting |
Laser Type | CO2 Laser |
| Laser power | Reci W2 100W/150W |
| Working Area | 600*400 mm |
| Laser Wavelength | 10.64 um |
| Repeatability Accuracy | ±0.001mm |
Control System | RDC6445G |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Warranty | 5 YEARS |
Applications & Materials

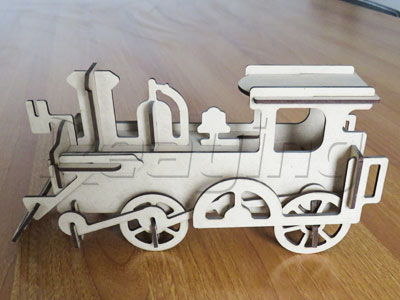

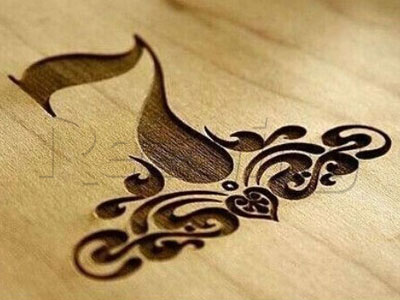

The RY-L640 wood laser machine is widely used in wood processing, bamboo products, wooden crafts, gift making, decoration, advertising signs and small-batch production.
Applicable Materials: Solid wood, plywood, MDF, bamboo, plastic, rubber, paper, leather and other non-metal materials.
FAQ
What materials can the RY-L640 process?
It is specially designed for wood and bamboo materials: solid wood, plywood, MDF, bamboo, etc. It also supports plastic, rubber, paper, leather and other non-metal materials.
What is the working area of the RY-L640?
What laser power options are available?
We provide 100W and 150W laser power with RECI or EFR laser tube for different engraving and cutting requirements.
Is the RY-L640 easy to operate for beginners?
Yes. It uses RDC6445G touch screen control system with user-friendly interface, supports offline work and multi-language. We provide English manual and video training.
Does it support engraving and cutting at the same time?
Yes. The machine supports high-precision pattern engraving, hollowing, cutting, marking and LOGO making for various wooden products.
What after-sales support do you provide?
We provide 5-year warranty, 24/7 online technical support, free operation training and complete spare parts supply.
