L1390S CO2 Mix Laser Cutting Machine
The L1390S CO2 mix laser cutting machine is a dual-purpose industrial laser equipment designed for both thin metal and non-metal processing. It combines high efficiency, low cost, and stable performance, making it an ideal choice for enterprises with mixed material production needs. With a working area of 1300×900mm and optional 150W, 180W, or 300W RECI laser tubes, it can cut stainless steel, carbon steel, acrylic, wood, plastic, leather, fabric, and more in a single machine.
Model:
RY-L1390S
Function:
Engraving & Cutting
Input Voltage:
110/220V, 50/60Hz
Laser Power:
150W / 180W / 300W
Laser Tube:
RECI
Working Area:
1300x900mm
Laser head
Equipped with luxury Consumables,USA original Focus Lens and reflect mirror, steel sheet cutter makes high efficiency and steady.
Red Light Pointer realizes the exact position

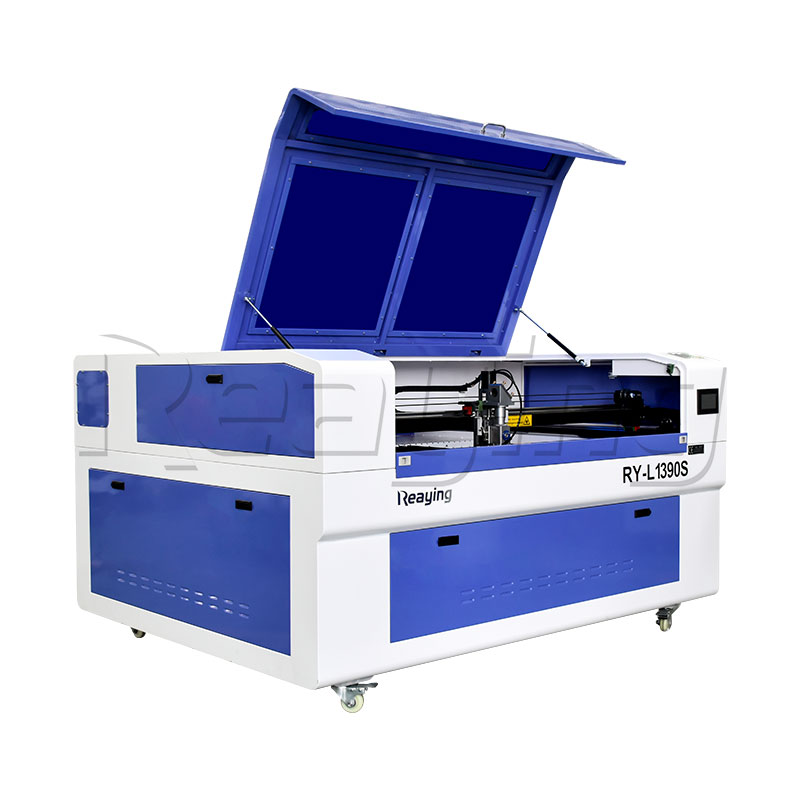

Stable Machine Structure & Working Table
The L1390S features a sturdy industrial-grade machine frame and a durable working table, ensuring long-term stability and vibration-free operation. The precision guide rails and lead screw system guarantee high cutting accuracy, even during continuous production runs.
User-Friendly Control System
The machine supports multiple file formats including DXF, AI, PLT, and BMP, and is compatible with common software like LightBurn and RDWorks. The simple operation interface makes it easy for operators to set parameters and start production quickly, reducing training time and labor costs.
Control cabinet
We use import good quality parts, core parts install position.
Metal and Non-metal Laser Cutting Controller ( RDC6332M)

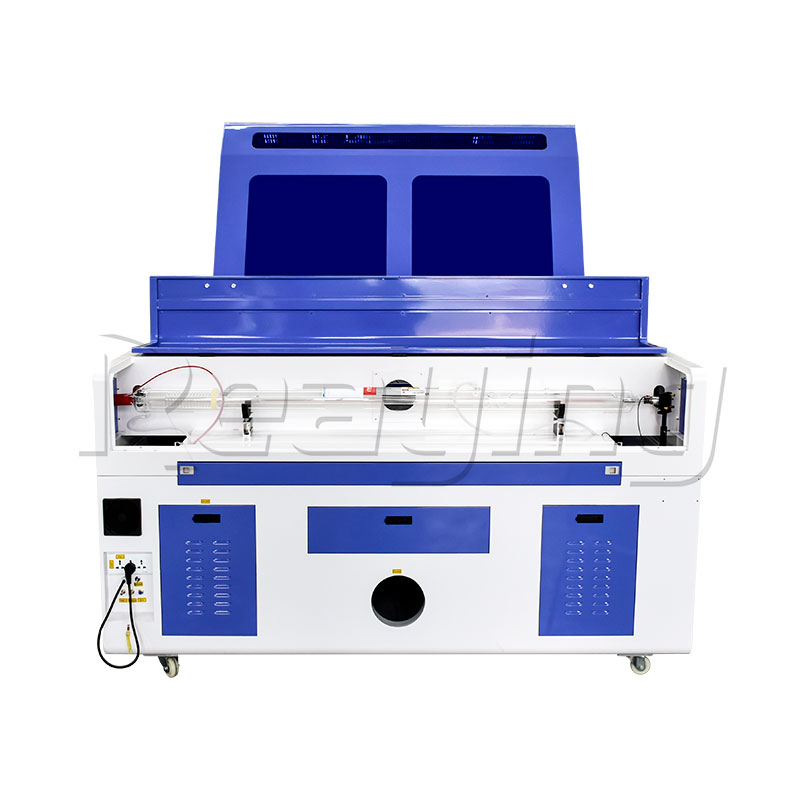

High-Precision RECI Laser Tube
Equipped with a high-quality RECI CO2 laser tube, the L1390S delivers stable power output, long service life, and consistent cutting performance. The 150W-300W power options allow users to handle different material thicknesses, from thin sheets to thicker plates, with smooth and clean edges.

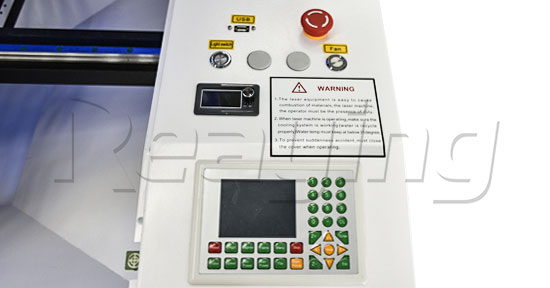

Control buttons

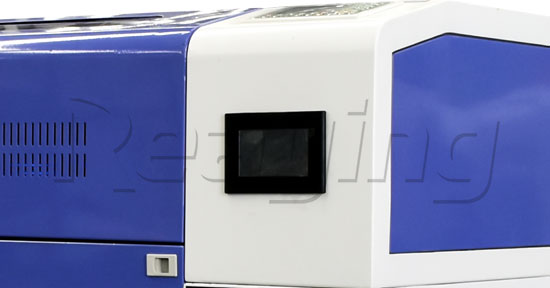

Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which make the metal plate cutter can not only work without computer, but also connect to U disk, USB communication.
Mix Cutting
The metal plate cutter supports both metal and non-metal Cutting, which can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board, paper, fabric, etc.

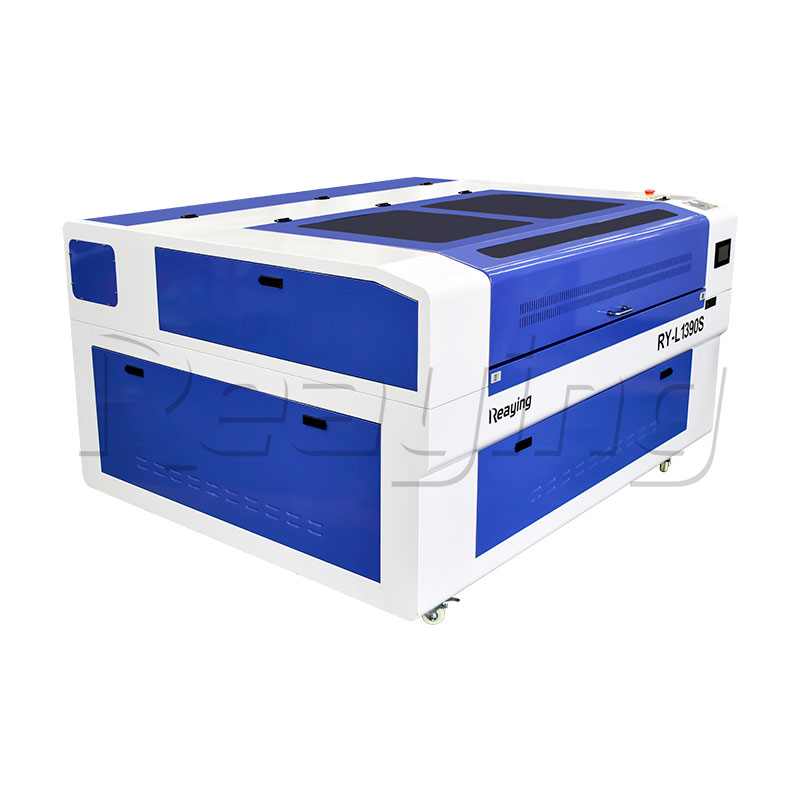

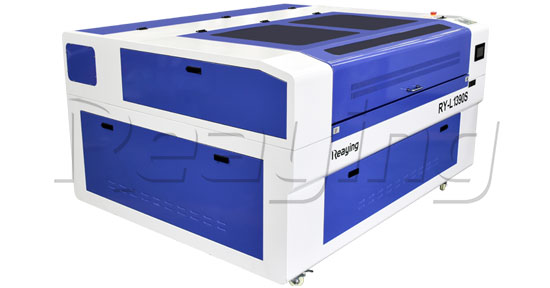

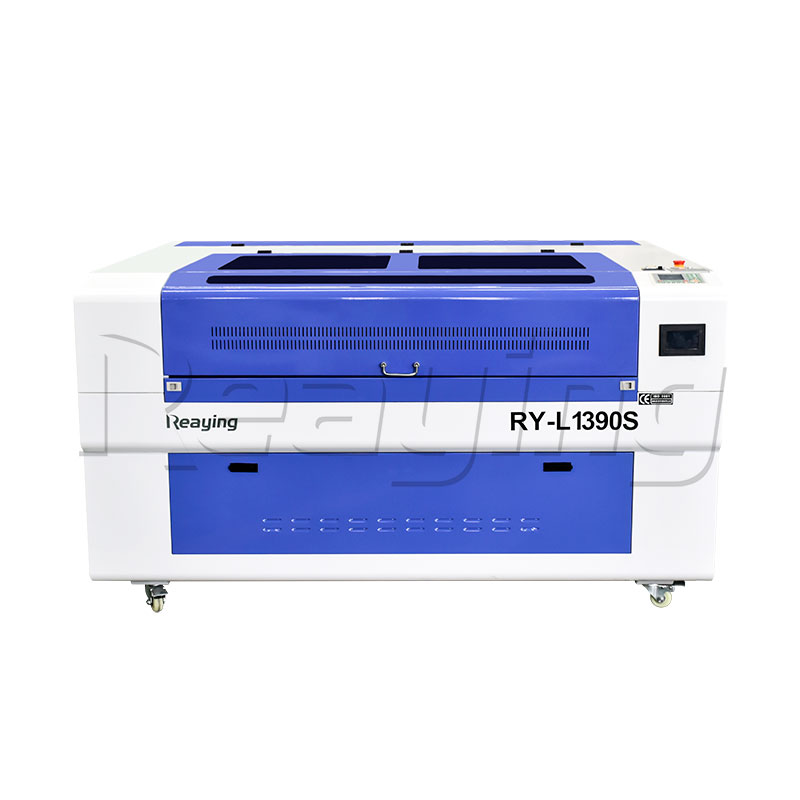

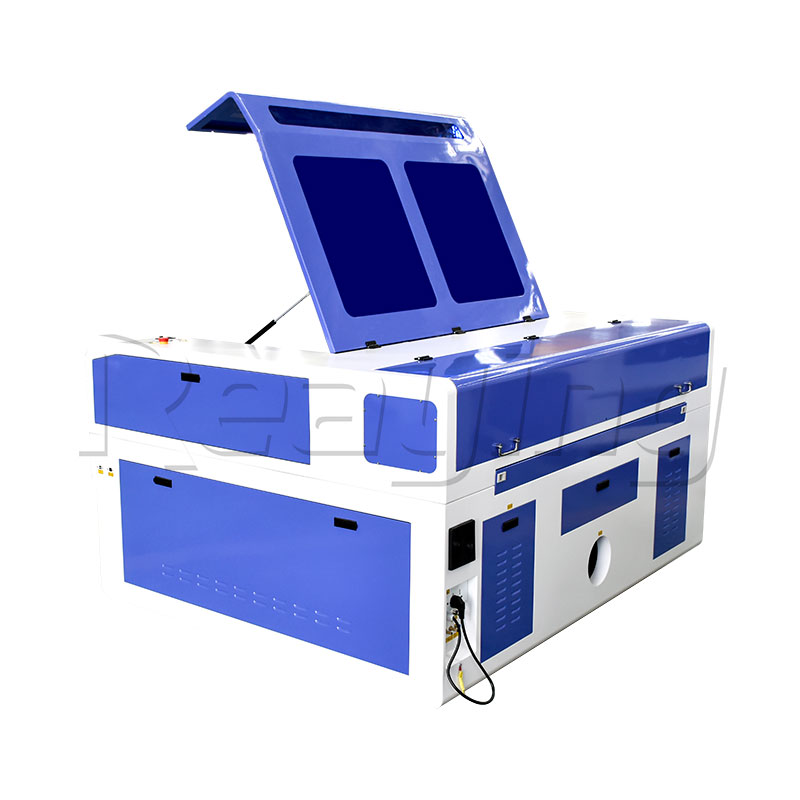

Machine body
Reaying laser machine steel shell is thicker than normal machine, makes the work precious higher.
Technical Parameters
Model | RY-L1390S |
|---|---|
Laser Type | CO2 Mix Laser |
Laser Power | 150W / 180W / 300W (Optional) |
Laser Source | RECI Laser Tube |
| Working Area | 1300 × 900 mm |
Max Cutting Speed | 0-500 mm/s |
Engraving Speed | 0-1000 mm/s |
Supported Materials | Stainless Steel, Carbon Steel, Acrylic, Wood, MDF, Leather, Fabric, Plastic, Paper, Rubber |
Working Mode | Continuous / Pulse |
Cooling System | Water Chiller |
Operating System | Windows XP / 7 / 10 / 11 |
Control Software | RDWorks / LightBurn |
Warranty | 1 Year for Whole Machine, 6 Months for Laser Tube |
