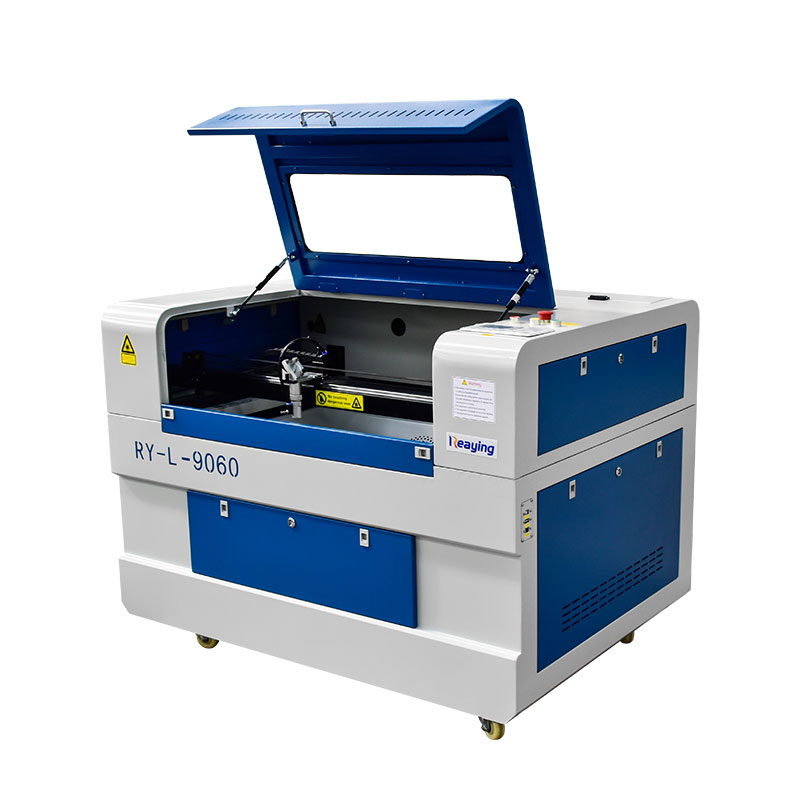

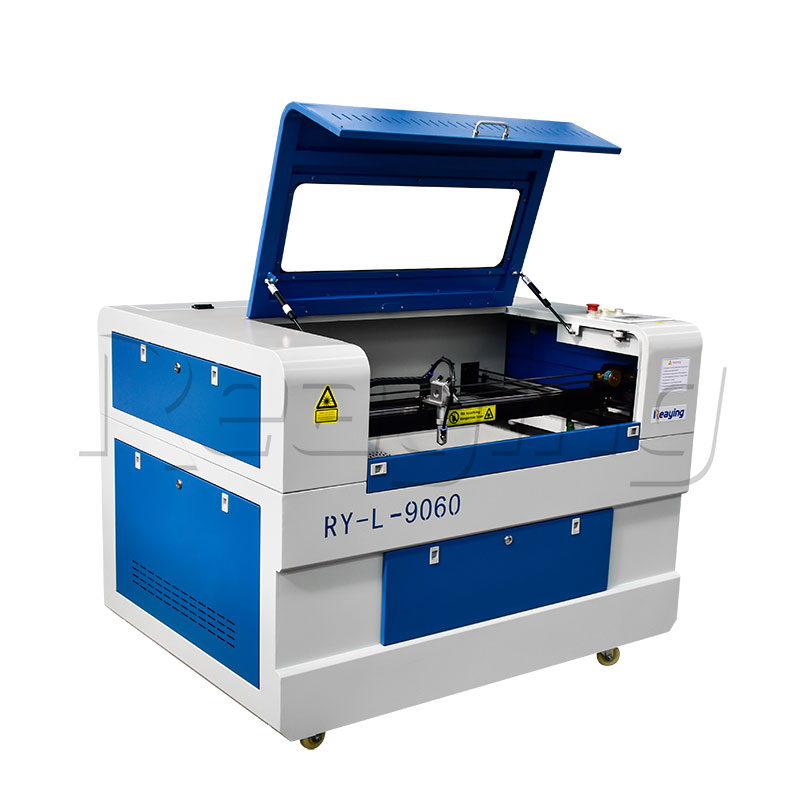

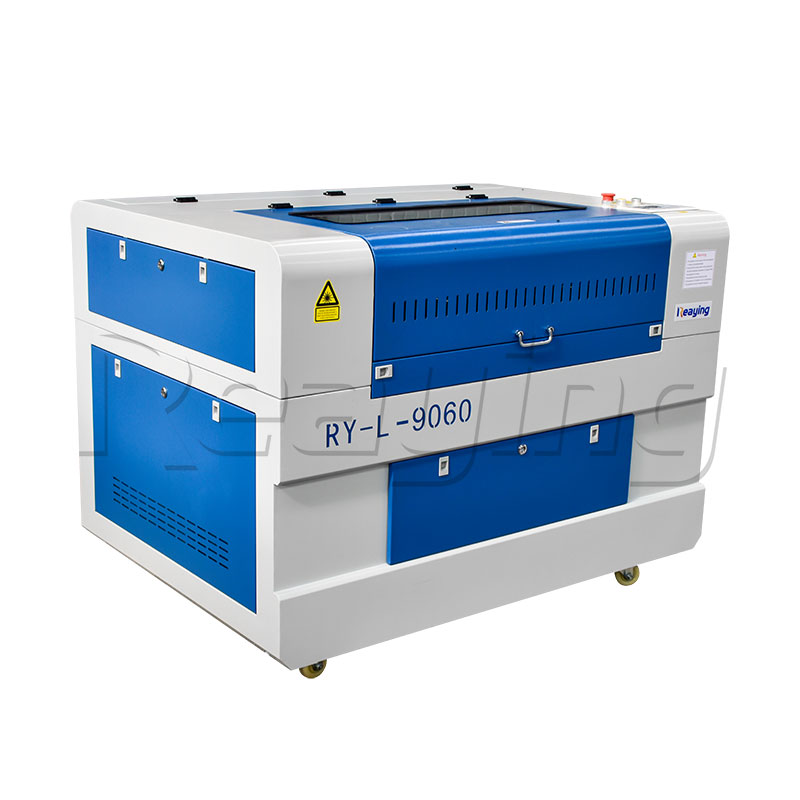

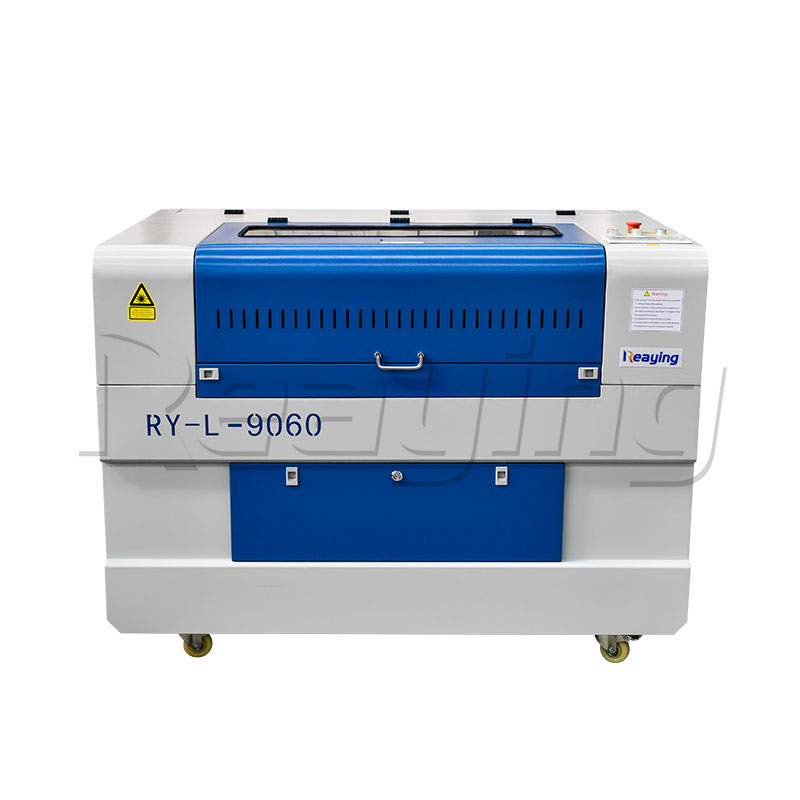

RY-L960 CO2 Leather Laser Engraving Machine
The RY-L960 CO2 leather laser engraving machine is a professional non-metal processing equipment dedicated for leather engraving, cutting, hollowing and pattern making. It is widely used for genuine leather, PU, artificial leather, fabric and other flexible materials, delivering fine patterns, clear logos and clean cutting edges without burning or yellowing. With a compact 900×600mm working area, stable performance and easy operation, it is the ideal choice for leather bags, shoes, belts, crafts and small-batch production.
Model:
RY-L960
Function:
Engraving & Cutting
Input Voltage:
Custom Made
Laser Power:
100W / 150W
Laser Tube:
RECI
Working Area:
900*600mm
Core Features
High-Precision Laser Head
Built-in high-quality focus lens, optional auto-focus function, red light pointer for precise positioning. Double laser head configuration is available to improve efficiency.
Working table
Aluminum working table, Fence blade working table optional
User-Friendly Control System
Adopts upgraded RDC6445G control system with LCD touch panel, supports offline working, multi-language (English, Russian, Spanish, French, Portuguese, etc.), dust-proof design, easy to learn and operate.
High-Quality Laser Tube
Equipped with high-quality RECI or EFR CO2 laser tube (100W / 150W optional), the machine ensures stable power output, long service life and consistent processing performance for long-term production.
Control cabinet
We use import good quality parts, core parts install position.
Servo and stepper motor optional
Stable Mechanical Structure
Thickened steel machine body ensures high rigidity and stability. Precision transmission system reduces vibration and ensures high processing accuracy.
Free parts
1). Laser Engraving software Package (English Version). 2). CW-3000 or CW5200 water chiller. 3). Air exhaust fan. 4). Air Pump. 5). Communication cable and USB cable. 6). 3 Reflect optics (installed in the machine). 7). 1 Focus optics (installed in the machine). 8). 1 Laser tube (installed in the machine). 9). Tool box
Optional parts
Rotary device for round object engraving Electric lift table, easy to adjust
Technical Parameters
Model | RY-L960 |
|---|---|
Function | Engraving & Cutting |
Laser Type | CO2 Laser |
| Laser power | Reci W2 100W/150W |
| Working Area | 900*600 mm |
| Laser Wavelength | 10.64 um |
| Repeatability Accuracy | ±0.001mm |
Control System | RDC6445G |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Warranty | 5 YEARS |
Applications & Materials
The RY-L960 CO2 leather laser machine is widely used in leather processing, shoe making, bags, belts, leather crafts, clothing, fabric engraving and advertising industries.
Applicable Materials: Genuine leather, PU leather, artificial leather, fabric, textile, leatherette, non-woven fabric and other non-metal materials.
