Vertical Machining Center: Redefining Manufacturing Precision
Vertical Machining Center is a high-performance CNC milling equipment that can complete milling, drilling, tapping, boring and other processes at one time. It is suitable for processing complex parts, molds, auto parts, mechanical components and other workpieces. It adopts a high-rigidity bed, high-precision guide rail and powerful spindle, with high processing accuracy, high efficiency and good stability. The CNC system is powerful and supports multi-axis linkage. It is widely used in machinery manufacturing, mold processing, aerospace, automotive and other industries. It greatly improves processing accuracy and efficiency, and redefines the standard of precision manufacturing.
Model:
RY-VMC640
Function:
Turning
Input Voltage:
Custom Made
Spindle speed:
0-10000pm
Overall size:
2400*2200*2600mm
Net weight:
1200KG

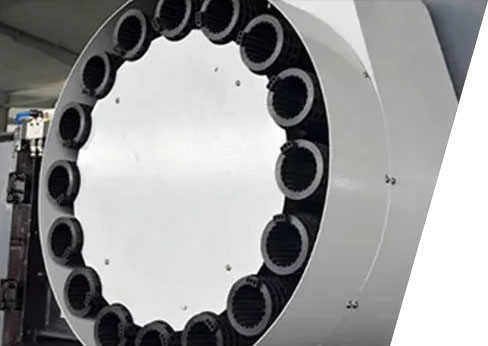

TOOL CHANGER
Automatic knife change,save time,optional 16 or 24 knife library

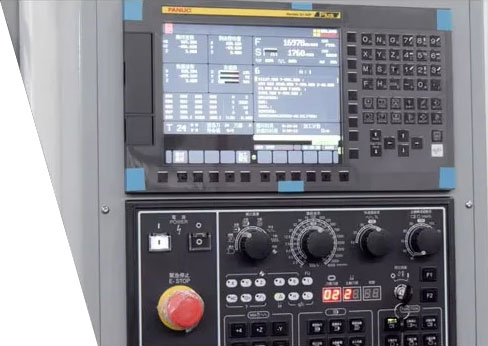

NUMERICAL CONTROL SYSTEM
System brand optional specific contact us

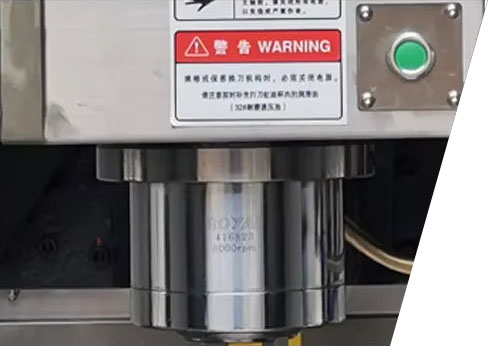

PRINCIPAL AXIS
high stable spindle high processing efficiency fast reaction speed stable operation

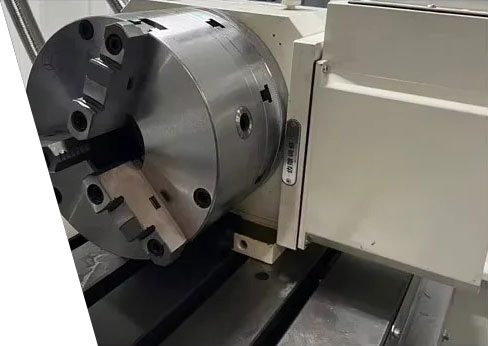

OPTIONAL FOURTH ROTARY SHAFT
Technical Parameters
| project | Content | unit | Vmc640 |
| workbench | Workbench area | mm | 800×360 |
| T-shaped groove | mm | 16-3-90 | |
| Max capacity | Kg | 300 | |
| trip | Moving range X、Y、Z | mm | 600×400×450 |
| Distance from spindle nose to workbench | mm | 90-550 | |
| Distance from spindle center to column guide rail surface | mm | 415 | |
| Feed | Fast moving speed x, y, Z | m/min | 24/24/20/min |
| Cutting feed speed x, y, Z | mm/min | 10~10000mm/min | |
| Spindle | Spindle taper hole | BT40 | |
| Spindle speed | r/min | 0-10000pm | |
| Spindle power | kw | AC servo 7.5 | |
| Tool magazine | Tool magazine capacity | hold | 12 bamboo hat |
| Maximum tool weight | kg | 8kg | |
| Maximum tool size | mm | φ150×300 | |
| Accuracy | Accuracy positioning accuracy x/y/z | mm | ±0.008 |
| Repeat positioning accuracy x/y/z | mm | ±0.005 | |
| Dimensions | Overall dimension length width height | mm | 2400*2200*2600 |
| weight | KG | 1200 |
Applications & Suitable Materials
The RY-VMC640 vertical machining center is widely used in machinery manufacturing, mold processing, aerospace, automotive, hardware, precision parts and other industries. It can process various metal materials such as steel, stainless steel, aluminum alloy, copper, etc., and complete complex one-time processing of various parts and molds.
FAQ
What processes can the vertical machining center complete?
It can complete milling, drilling, tapping, boring and other complex processes at one time.
What is the spindle speed and taper?
Spindle speed: 0-10000rpm; Spindle taper hole: BT40.
Is the tool changer automatic?
Yes, it uses automatic tool change. 16-tool or 24-tool magazine is optional.
Does it support fourth axis?
Yes, fourth rotary shaft is optional for multi-axis complex machining.
What is the positioning accuracy?
Positioning accuracy: ±0.008mm; Repeat positioning accuracy: ±0.005mm.
