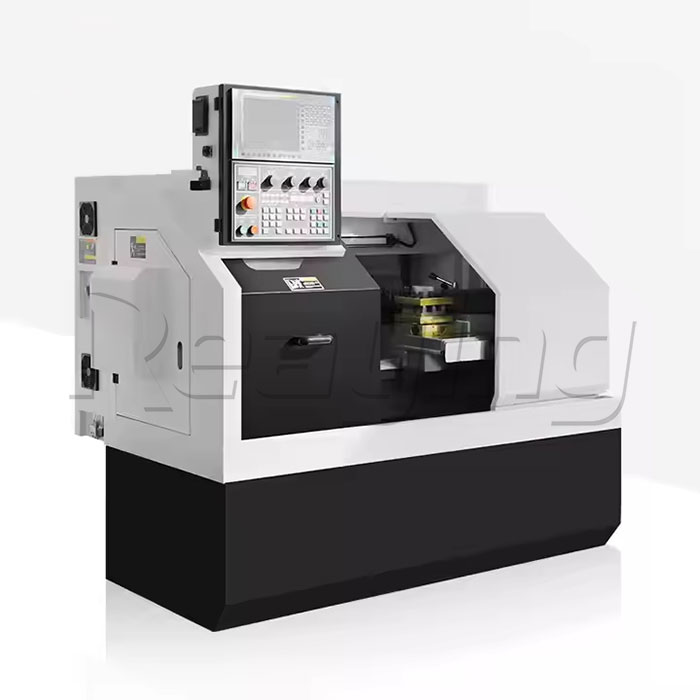

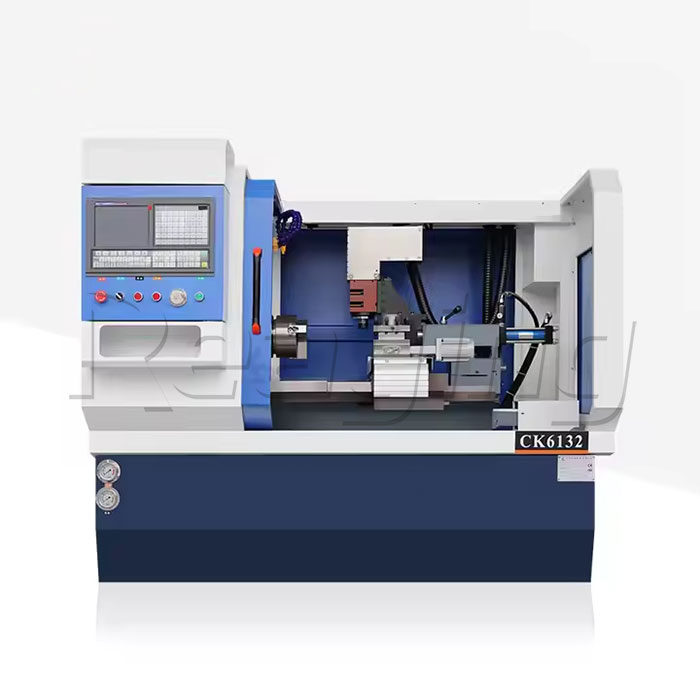

Efficient and Reliable: CK6132 CNC Lathe Solutions
Model:
RY-CK6132
Function:
Turning
Input Voltage:
Custom Made
Main Motor Power:
3.7 kw Servo(3phase 380v 50hz)
Dimension:
2100*1500*1700mm
Net Weight:
1300KG
CNC controller
Standard GSK980TB3
+ Function of conic interpolation, ellipse interpolation, parabola interpolation
+ groove machining cycle instruction function
+ Automatic knife repair function
+ Custom M code (for automatic feed)
+ Adaptive servo spindle, control spindle indexing
+ Front USB port, support U disk file operation and software upgrade
+ A variety of security protection functions, complete data backup and recovery
Optional Siemens 808D

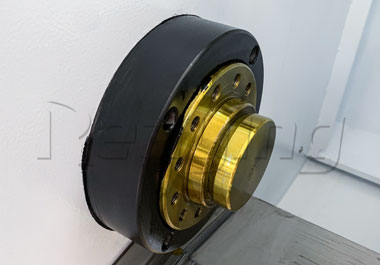

Chuck
Standard: Pneumatic collet
The standard pneumatic collet is a locking device that uses high-quality spring steel to grip the workpiece with high precision machining, and the inner aperture can be customized in various sizes such as round, hexagonal, square, etc.
Optional: Manual 3 jaw chuck/pneumatic chuck/hydraulic chuck
Tool post
Standard gang type tool post
Optional: electric 4 station tool post
Tailstock
Standard: without tailstock
Optional: manual tailstock or pneumatic tailstock
Automatic lubrication
Electric lubrication oil pump, can freely set and adjust lubrication interval
time, as well as lubrication duration
Electric parts
Adopts Delixi, Schneider and other well-known brands at home and abroad components, stable operation, strong anti-interference ability.
Technical Parameters
| Model | CK6132 |
| Max. swing dia. over bed | 320mm |
| Max. swing dia. over cross slide | 130mm |
| Max. processing length | 400mm |
| Dia. of spindle | 49mm |
| Spindle taper | MT5 |
| Through hole dia. of drawing pipe | 41.5mm |
| Spindle tie rod thread | M48×1.5 |
| Spindle speed | 10-3000mm |
| Spindle head type | A2-5 |
| Taper of spindle bore | 21° |
| Tool holder | 3 gang tools |
| Tool bar section | 20*20 mm |
| Main motor power | 3.7 kw servo(3phase 380v 50hz) |
| X/Z axis torque | 4N.M/6N.M |
| X/Z axis travel | 550/400 |
| X/Z axis fast feeding speed | 12/12 m/min |
| Tailstock sleeve travel | 100mm |
| Tailstock taper | MT4 |
| Dimension | 2100*1500*1700mm |
| Weight | 1200/1300kg |
