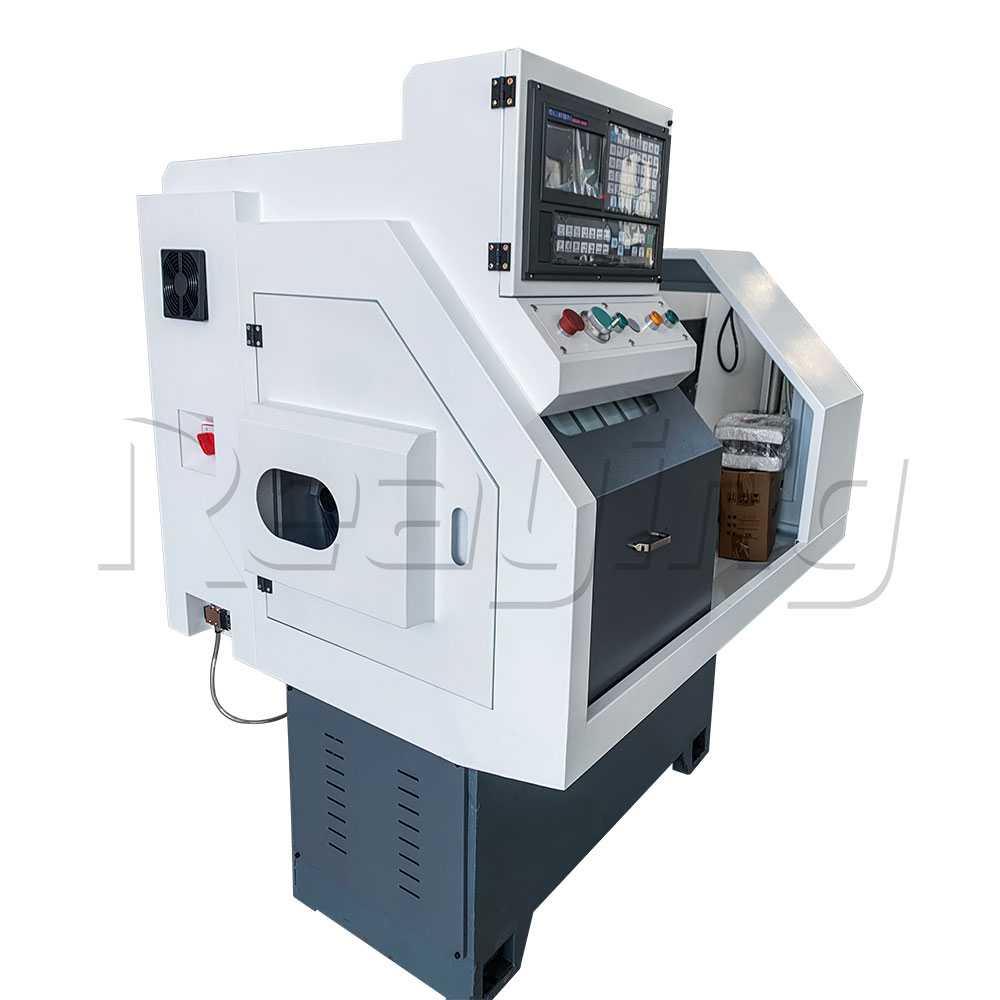

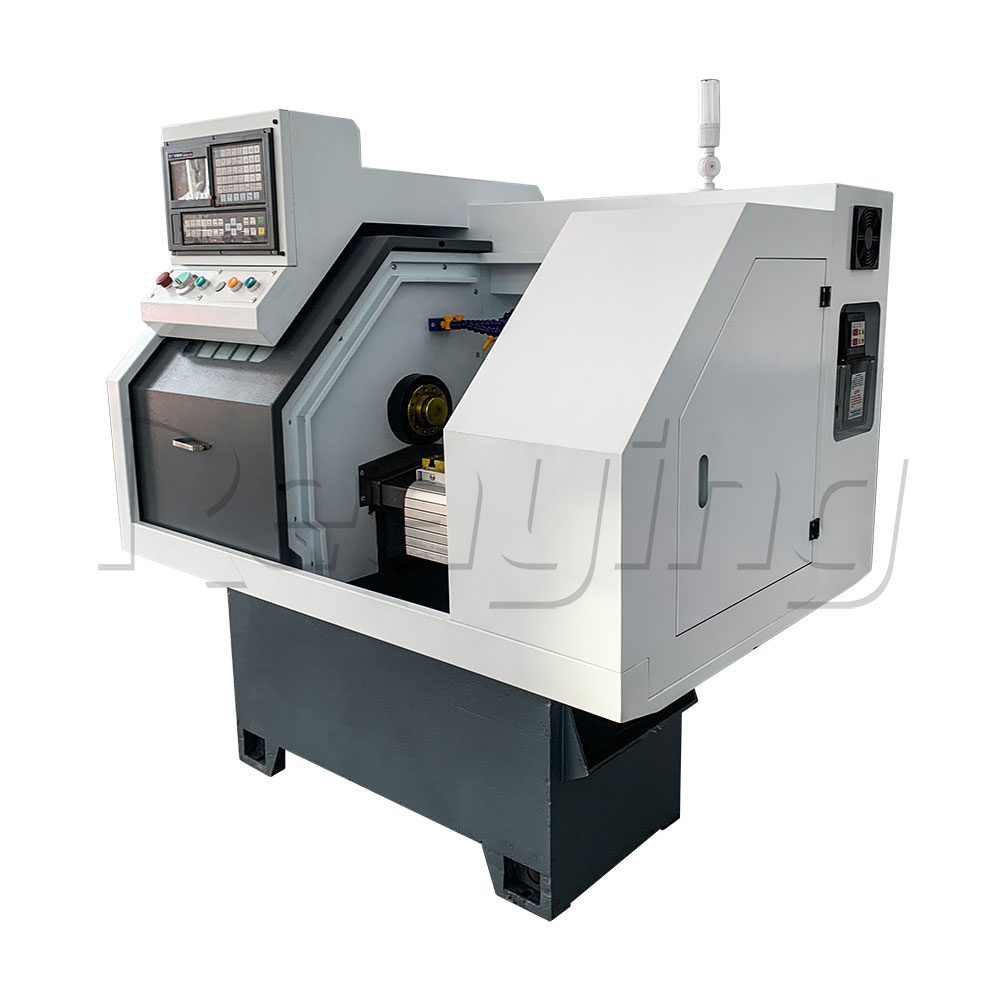

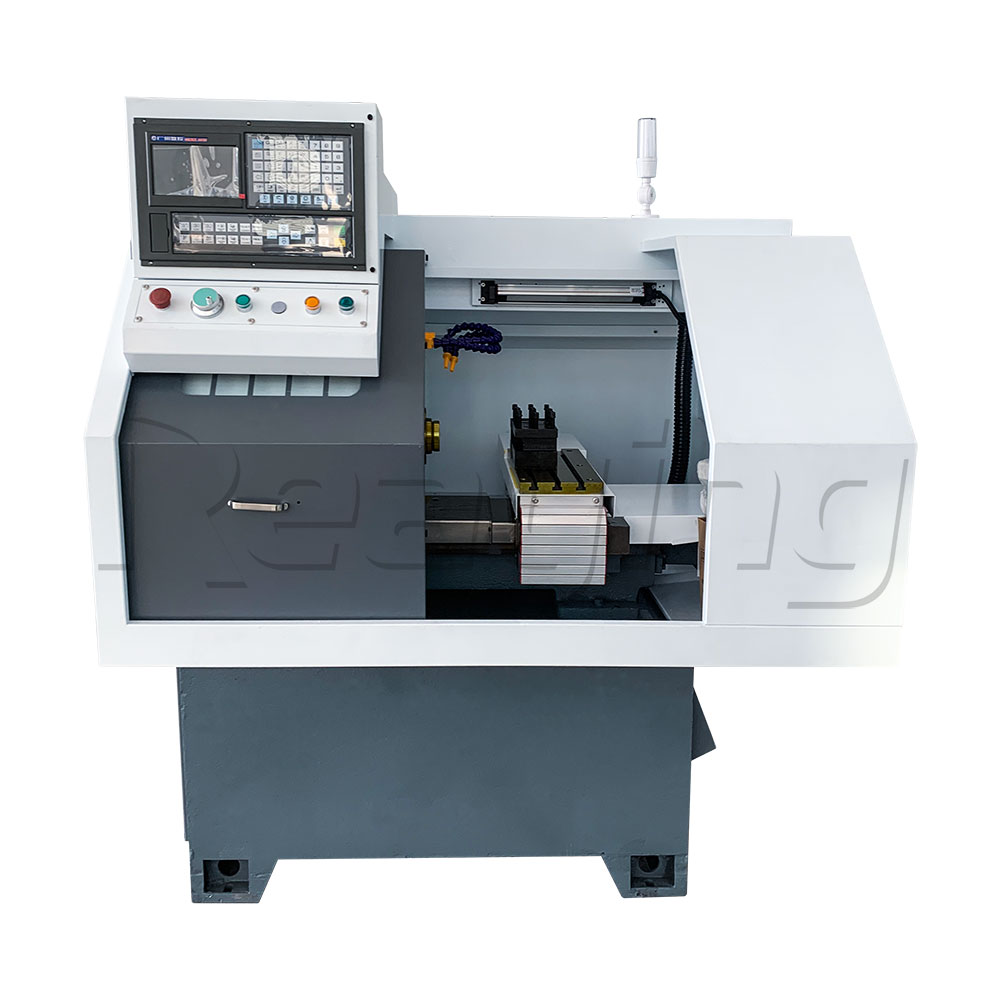

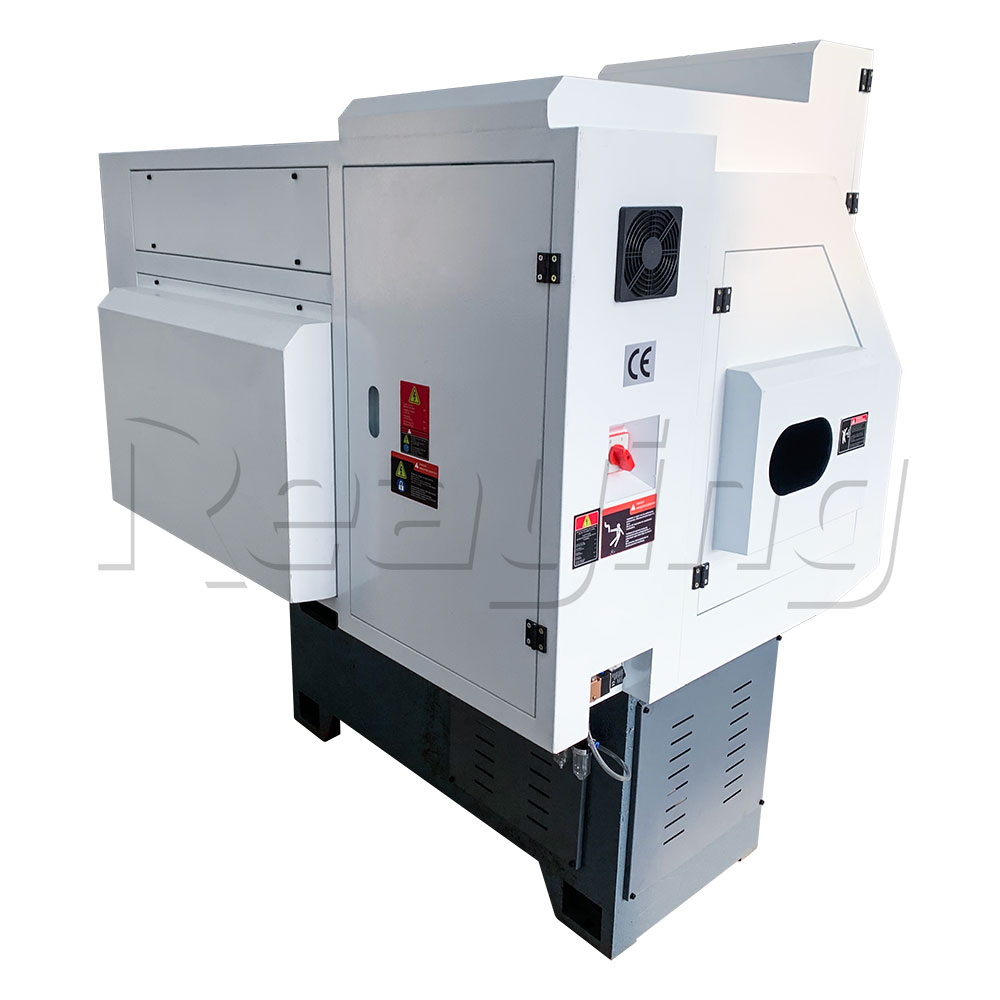

CK0640 CNC Lathe – High Accuracy for Complex Machining
Model:
RY-CK0640
Function:
Turning
Input Voltage:
Custom Made
Spindle Power:
4KW
Overall size:
1850*1300*1600mm
Net weight:
1000KG
CNC controller
Standard GSK 928
Optional Siemens 808D
Chuck
Standard: Pneumatic collet
The spindle comes with a waterproof door cover and using a pneumatic collet device.
Optional: Manual 3 jaw chuck/pneumatic chuck/hydraulic chuck
Tool post
Standard gang type tool post
Optional: electric 4 station tool post
Tailstock
Standard: without tailstock
Optional: manual tailstock+200usd
Automatic lubrication
Electric lubrication oil pump, can freely set and adjust lubrication interval
time, as well as lubrication duration
Electric parts
Delixi Schneider and other domestic famous brands of electrical components
Technical Parameters
| Capability | Max. Swing over bed | mm | Φ320 |
| Max. Swing over cross slide | mm | Φ100 | |
| Maximum working length | mm | 350 | |
| Max length of work piece | mm | 350 | |
| Spindle | Spindle bore | mm | Φ48 |
| Spindle speed | R/min | 100-3000 | |
| X axis travel | mm | 600 | |
| Z axis travel | mm | 330 | |
| Clamping | The clamping mode of the work piece | / | Pneumatic collet Optional: Manual 3 jaw chuck/Pneumatic chuck/Hydraulic chuck |
| Chuck diameter | mm | 160 | |
| Power | Main drive motor | KW | 4 |
| Pump power motor | w | 90 | |
| Tool type | Tool post | / | Row of knives Optional: electric 4 station tool post |
| Tool dimension | mm | 20*20 | |
| Tailstock | / | Optional manual tailstock (+200usd) | |
| Machine tool lubrication system | / | Fully automatic gear lubricating oil pump | |
| Size | Machine size | mm | 1600*1100*1600 |
| Weight | KG | 1000 |
Applications & Suitable Materials
The CK0640 CNC lathe is widely used for high-precision turning of small and complex parts in electronics, medical equipment, instrumentation, automotive parts, hardware and precision machinery manufacturing industries.
Applicable Materials: Carbon steel, stainless steel, aluminum alloy, copper, brass, plastics and other precision processing materials.
Main Processes: External turning, internal boring, threading, grooving, facing and complex contour machining for miniature precision workpieces.
FAQ
What is the main feature of the CK0640 CNC lathe?
What control system does the CK0640 use?
What clamping methods are available?
Is tailstock included as standard?
What industries is this machine suitable for?
It is ideal for electronics, medical devices, precision instruments, hardware and small parts manufacturing requiring high accuracy and complex machining.
