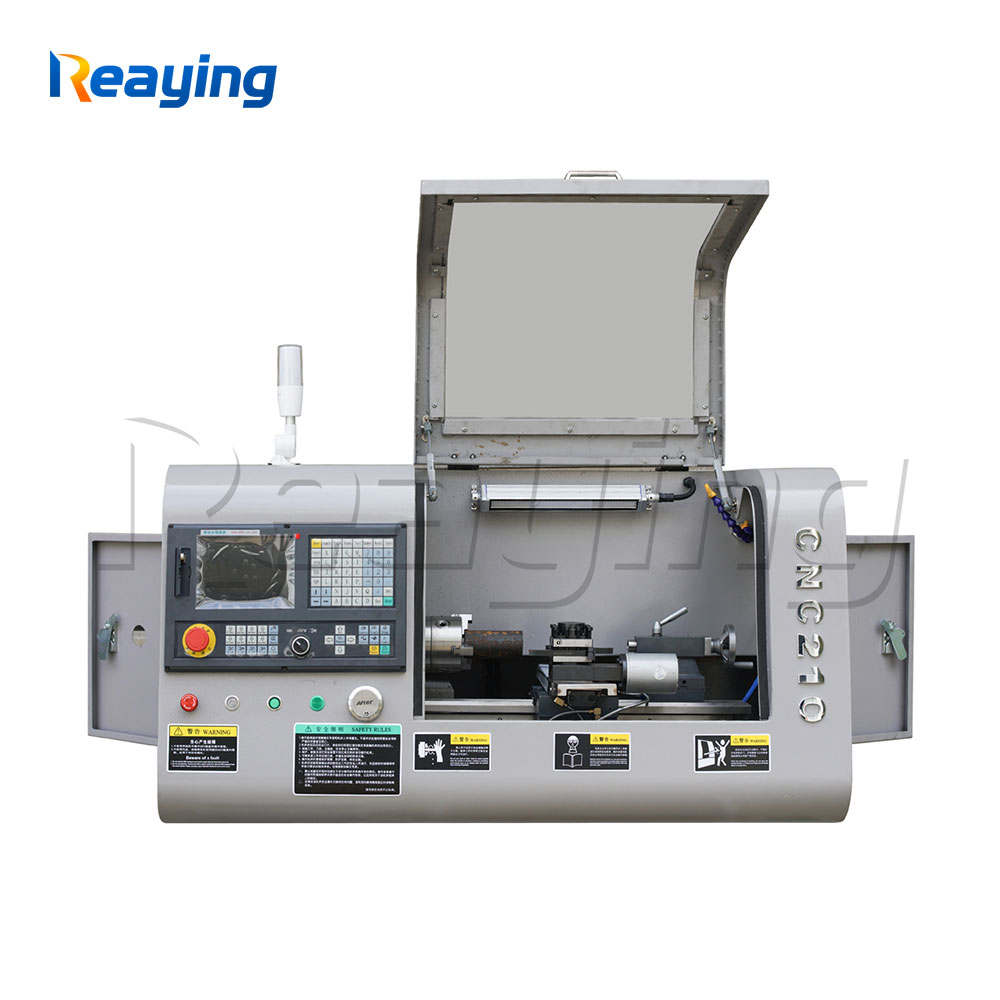

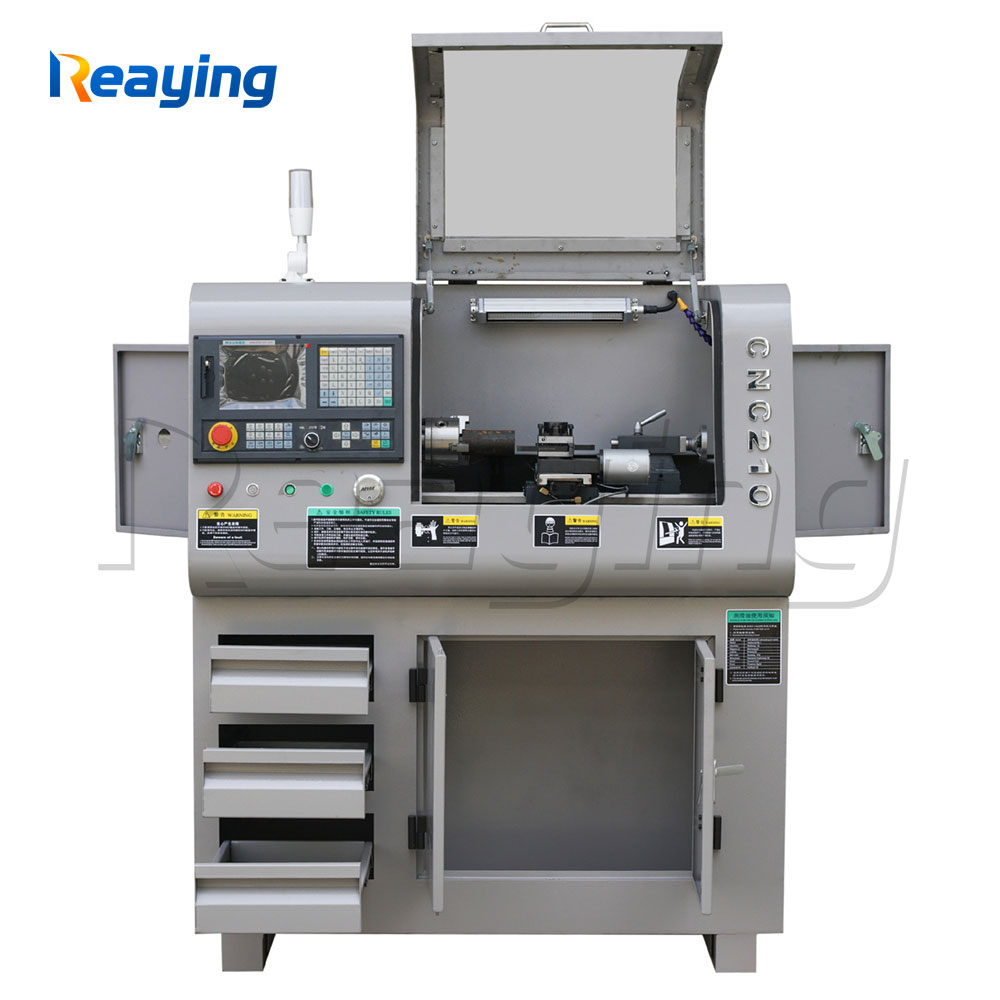

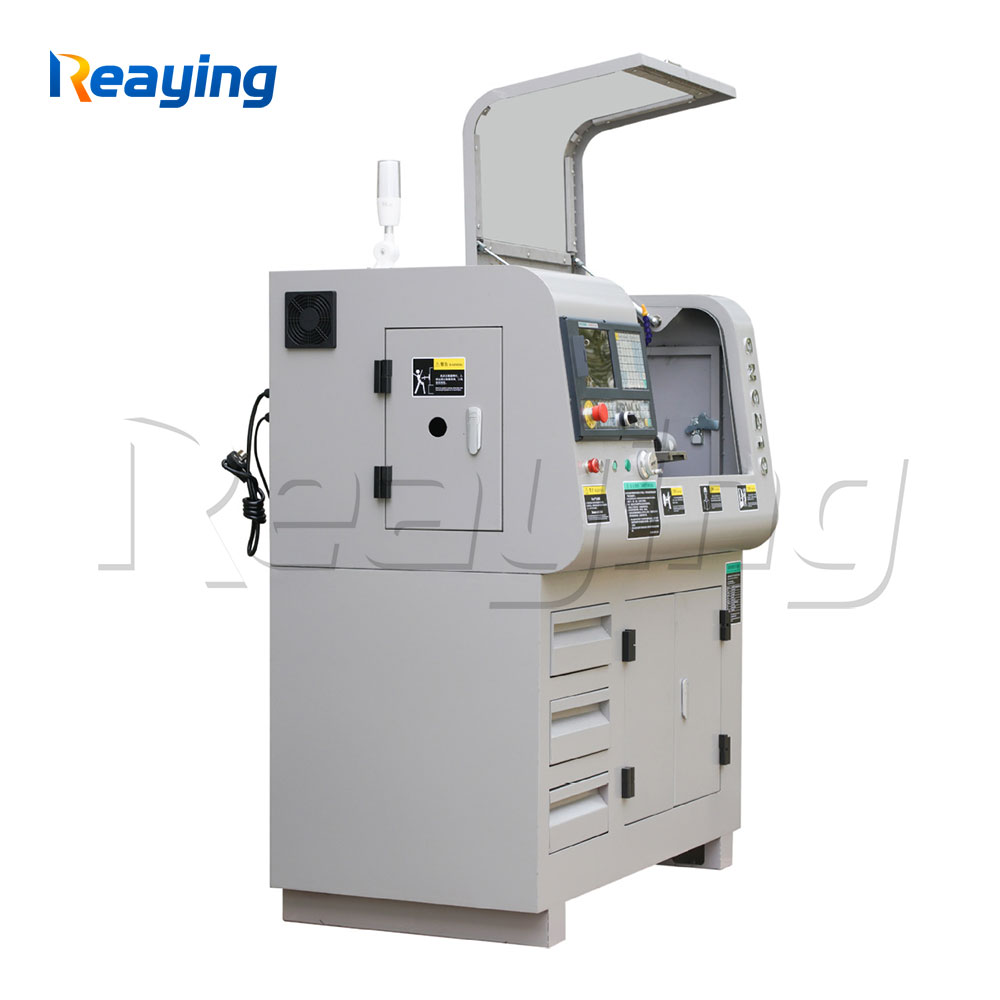

New CNC210 CNC Lathe With 4 Positions Toolpost
Model:
RY-CNC210
Function:
Turning
Input Voltage:
Custom Made
Spindle Power:
1.2KW
Overall size:
1170*700*860mm
Net weight:
200KG

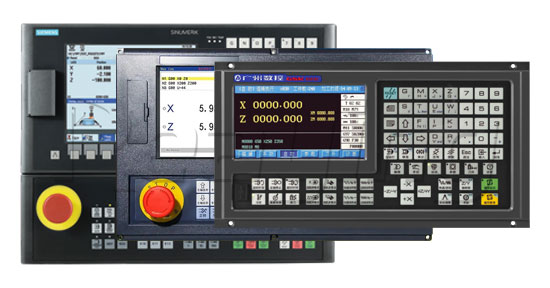

System
Equipped with CNC operating system, optional After, SIEMENS system, etc.

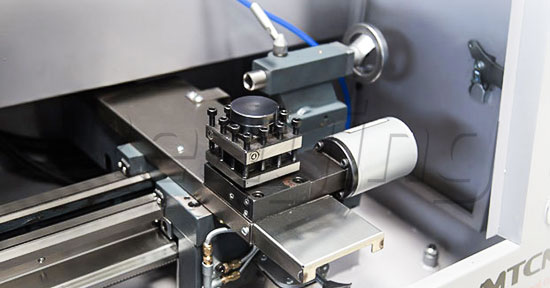

Tool Holder
Equipped with four-station tool rest, optional electric tool rest

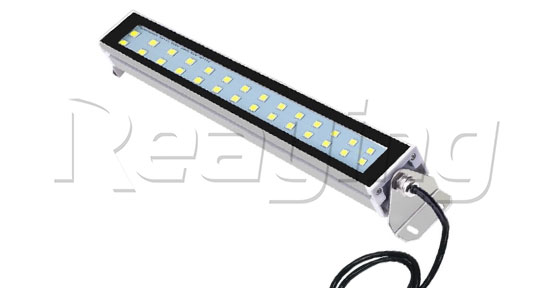

LED Lighting
Equipped with work lights inside to display real-time processing conditions

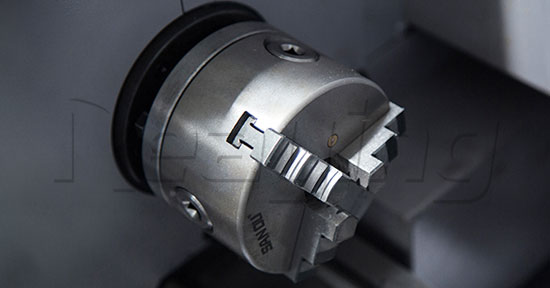

Three-jaw Chuck
Standard three-jaw linkage chuck, stable clamping and high precision

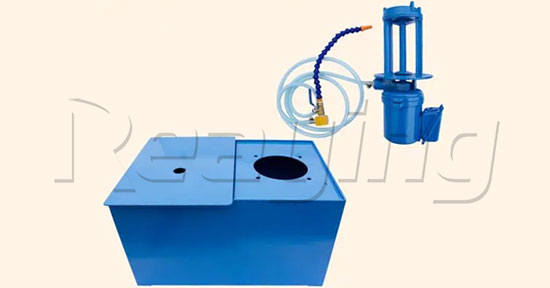

Cooling System
Equipped with cooling system inside, support disassembly

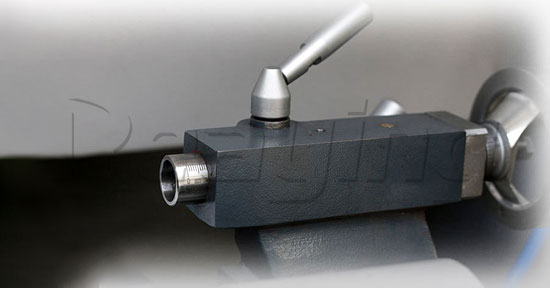

Tailstock Sleeve
Taper MT2, maximum movement 50MM
Technical Parameters
| Specification | CNC210 |
|---|---|
| Max.swing over bed | 210mm |
| Max.swing over carriage | 100mm |
| Distance between centers | 250mm |
| Sindle bore | 26mm |
| Sindle taper | MT4 |
| X travel | 90mm |
| Z travel | 300mm |
| Tool post | 4-position |
| rapid speed | 3m/min |
| Feeding motor power | 3.0 N.M |
| Feeding motor type | step motor |
| Spindle motor power | 1.2KW |
| Spindle motor type | incremental Servo motor |
| Min.setting unit | 0.001mm |
| Tailstock dia. | 22mm |
| Tailstock travel | 50mm |
| Tailstock taper | MT2 |
| Overall size | 1170*700*860mm |
| Net weight | 200KG |
Applications & Suitable Materials
The CNC210 mini CNC lathe is widely used for small parts processing, teaching training, home DIY, small hardware, electronic components and instrument parts production. It is an ideal entry-level machine for beginners, workshops and training centers.
Applicable Materials: Plastic, wood, non-ferrous metal, aluminum, copper, plastic and other light processing materials.
FAQ
What is the tool post type of CNC210 lathe?
It is equipped with standard 4-position tool post, electric tool post is optional.
What is the spindle power and motor type?
Spindle motor power is 1.2KW, adopting incremental servo motor.
Is this a mini lathe for home and training?
Yes. It is compact, lightweight, low noise and low power consumption, very suitable for home DIY, teaching and small shops.
Does it include cooling system and lighting?
Yes. Built-in cooling system and LED working light are standard.
What is the tailstock specification?
Tailstock taper is MT2, travel distance is 50mm, diameter is 22mm.
