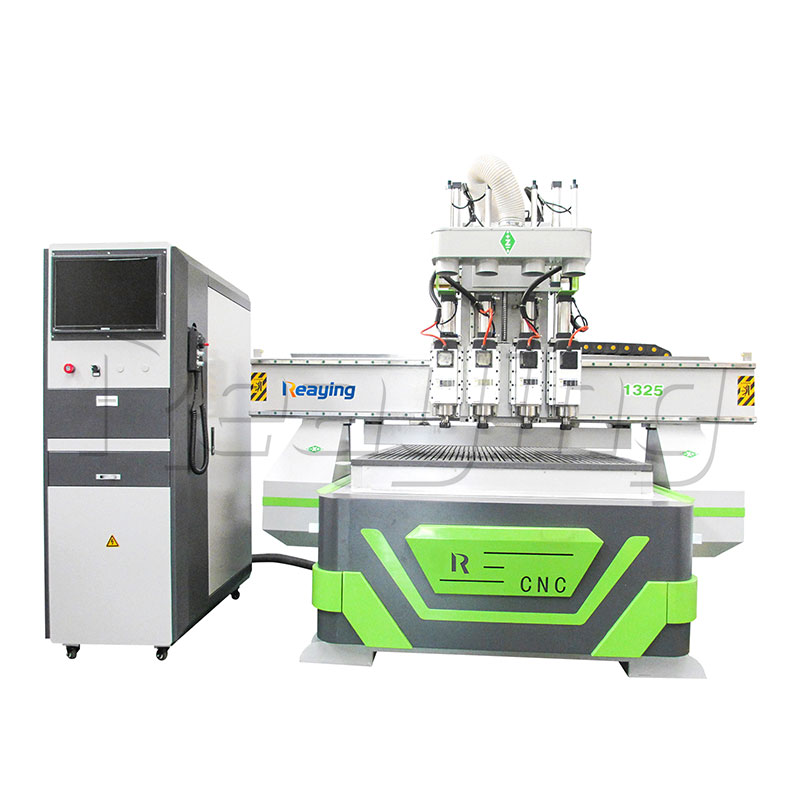

Multi Spindle/Head/Axis Cnc Router Machine For Sale
Model:
RY-C1325-4
Function:
Engraving & Cutting
Input Voltage:
Custom Made
Spindle Power:
9KW
Spindle Type:
Air Cooling/ Water Cooling
Working Area:
1300*2500mm
Control System
The control system of RY-C1325A adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis.（ WEIHONG system is optional）
Spindle System
RY-C1325A selects CC 9kw air-cooled spindle which is low noise, big cutting strength, high precision, the high power cutting not only makes the carving fine but also without serrated, the bottom surface is smooth and the contour is clear.
Servo motor system
Leadshine/ Delta/ Yaskawa high-Power pure servo drive motor, high torque, high precision, fast, to ensure the speed and stability of equipment processing and operation.The z-axis adopts the band brake motor, which can protect the head of the equipment from slipping after power outage, and maximize the safety performance of the equipment.
Transmission system
Taiwan HIWIN High-precision Square linear guide rail, high precision, long service life, large contact surface, strong load-bearing capacity, the use of vertical rail process can better ensure operational stability.Square Rail raw materials using bearing steel quality, wear resistance, hardness is much greater than most of the market 45th steel Quality Square Rail
Technical Parameters
| Working area | 1300*2500*200 |
|---|---|
| Power of spindle | CC 9KW |
| Walk speed | 60-80m/min（MAX） |
| Work speed | 20m/min（MAX） |
| Warranty | 3 years |
Applications & Suitable Materials

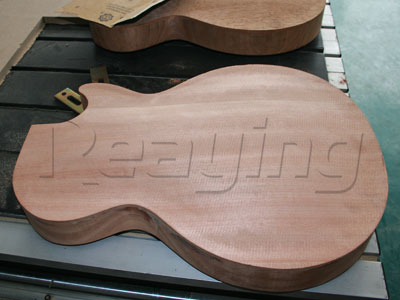

The RY-C1325 multi spindle CNC router is widely used for batch processing of wood crafts, furniture parts, cabinet doors, advertising signs and wooden products. It is suitable for wood, MDF, acrylic, PVC and other non-metal materials.
FAQ
How many heads can this machine be customized?
It can be customized with 2 heads, 4 heads, 6 heads or more according to customer requirements.
What control system does it use?
Standard with Taiwan Syntec control system; WEIHONG system is optional.
What is the spindle power?
Standard 9KW air-cooled spindle, high precision and strong cutting force.
Is this machine suitable for mass production?
Yes. Multi-spindle synchronous processing greatly improves output and efficiency, ideal for batch production.
What is the working area?
Working area: 1300*2500mm, suitable for woodworking and advertising industry.
