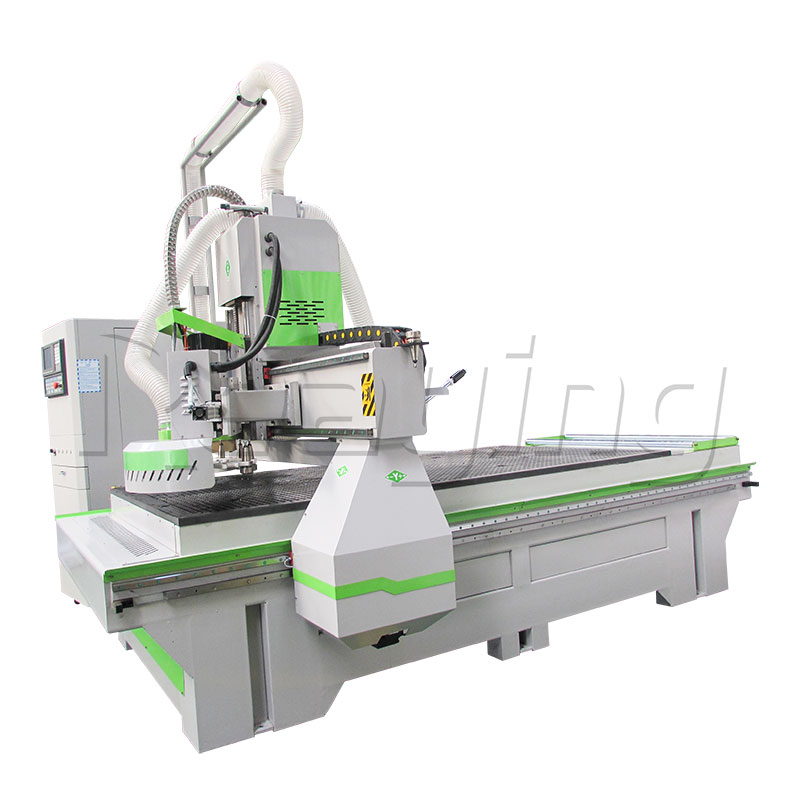

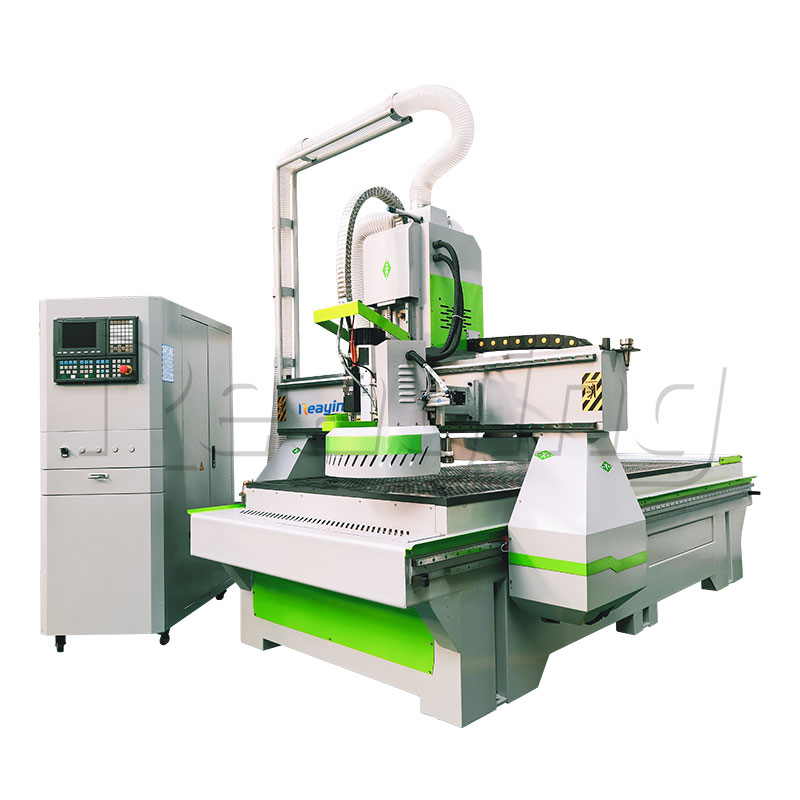

12 Tools Automatic Tools Changer CNC Router Engraving Machine
Model:
RY-C1325A
Function:
Engraving & Cutting
Input Voltage:
Custom Made
Spindle Power:
9KW
Spindle Type:
Air Cooling/ Water Cooling
Working Area:
1300*2500mm

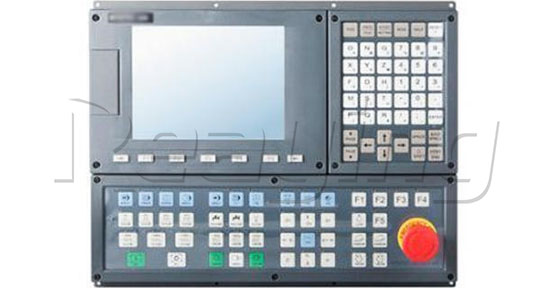

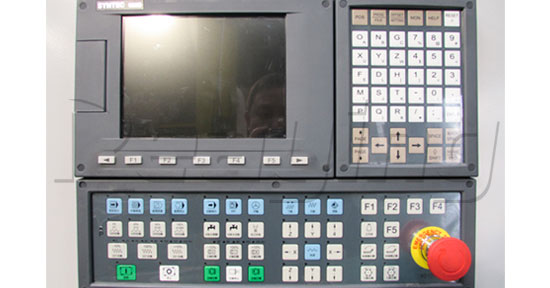

Control System
The control system of RY-C1325A adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis.（ WEIHONG system is optional）

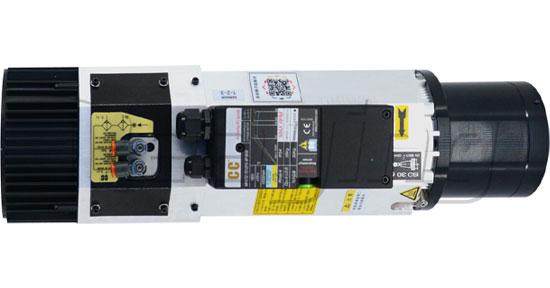

Spindle System
RY-C1325A selects CC 9kw air-cooled spindle which is low noise, big cutting strength, high precision, the high power cutting not only makes the carving fine but also without serrated, the bottom surface is smooth and the contour is clear.

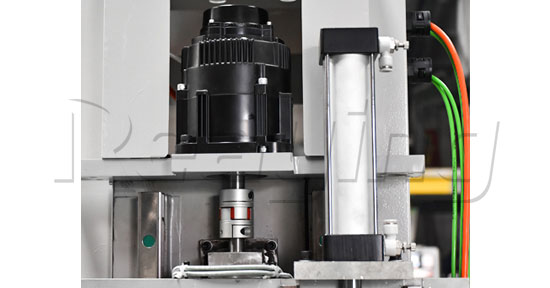

Servo motor system
Leadshine/ Delta/ Yaskawa high-Power pure servo drive motor, high torque, high precision, fast, to ensure the speed and stability of equipment processing and operation.The z-axis adopts the band brake motor, which can protect the head of the equipment from slipping after power outage, and maximize the safety performance of the equipment.

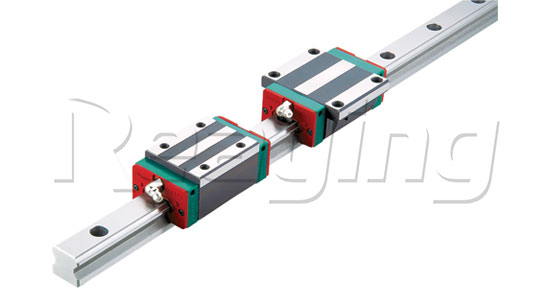

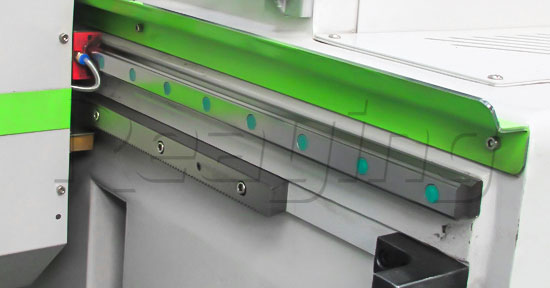

Transmission system
Taiwan HIWIN High-precision Square linear guide rail, high precision, long service life, large contact surface, strong load-bearing capacity, the use of vertical rail process can better ensure operational stability.Square Rail raw materials using bearing steel quality, wear resistance, hardness is much greater than most of the market 45th steel Quality Square Rail

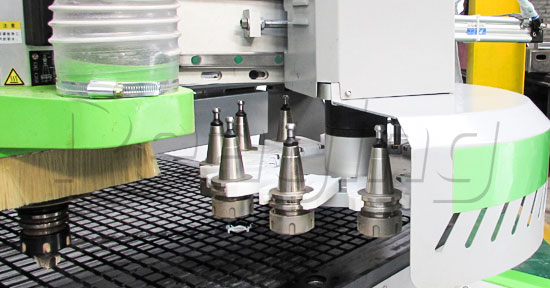

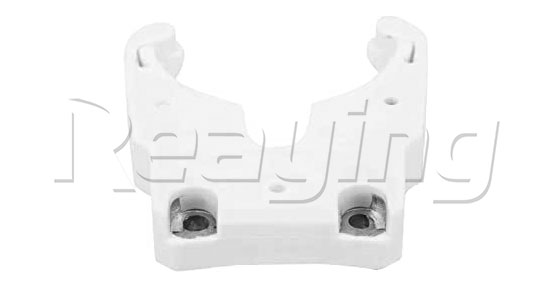

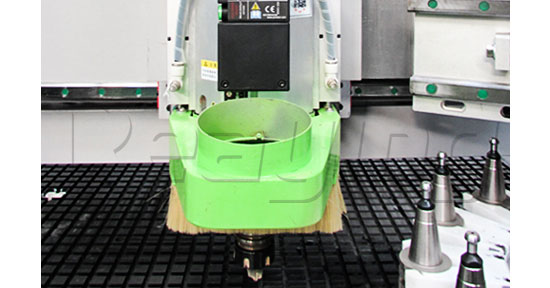

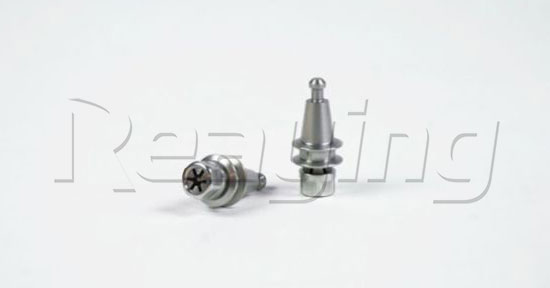

Automatic Tools Changer system
Reaying designed tools changer system has fast tool change speed, high precision character, which also eliminated manual cumbersome tools changer, shortens the tools change time and increase the productivity.
Technical Parameters
| Working area | 1300*2500*200 |
|---|---|
| Power of spindle | CC 9KW Automatic Tools changer |
| Walk speed | 60-80m/min（MAX） |
| Work speed | 20m/min（MAX） |
| Warranty | 3 years |

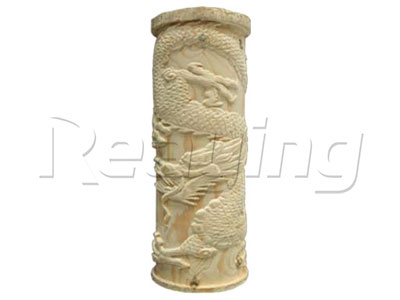

Applications & Suitable Materials
The RY-C1325A 12-tools ATC CNC router is widely used for panel furniture, cabinet doors, solid wood carving, advertising signs, wooden crafts and other batch processing. It is suitable for wood, MDF, acrylic, PVC and other non-metal materials.
FAQ
How many tools can this CNC router carry?
It is equipped with 12 tools automatic tool changer (ATC) system for fast and automatic tool switching.
What control system does it use?
Standard with Taiwan Syntec control system; WEIHONG system is available as an option.
What is the spindle power and type?
Standard 9KW air-cooled spindle, high precision, low noise and strong cutting force.
Is it suitable for furniture mass production?
Yes. Heavy-duty frame, high-performance servo and automatic tool change make it ideal for panel furniture and cabinet mass production.
What is the working area?
Working area: 1300*2500mm, widely used for woodworking and advertising industry.
