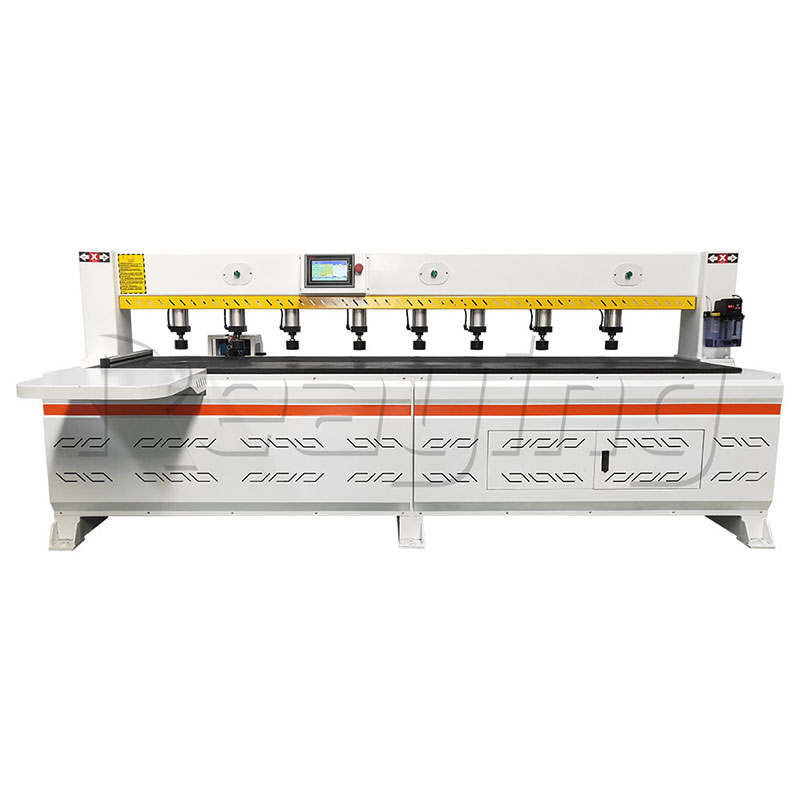

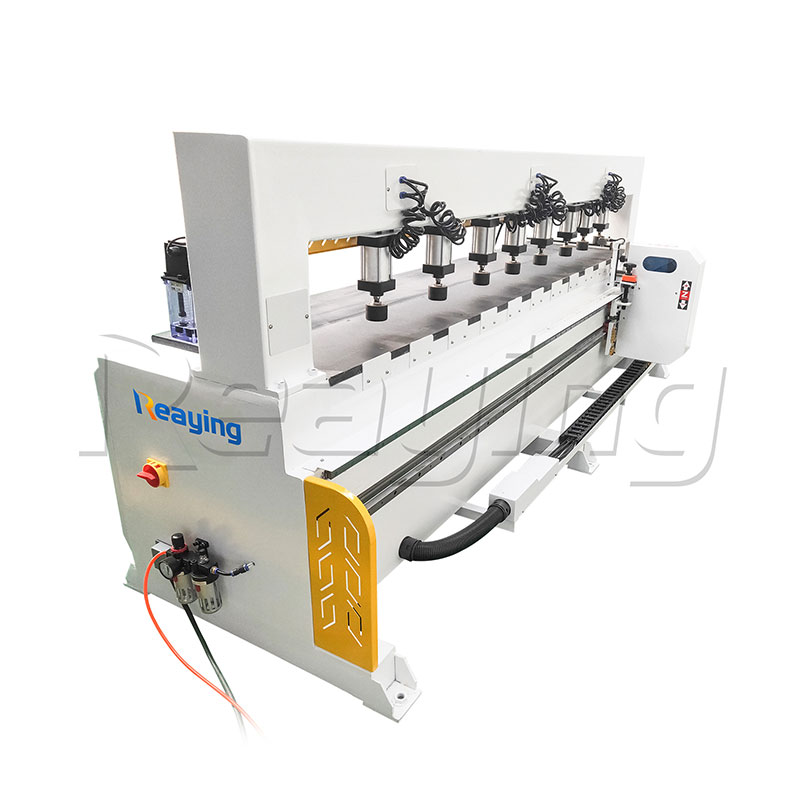

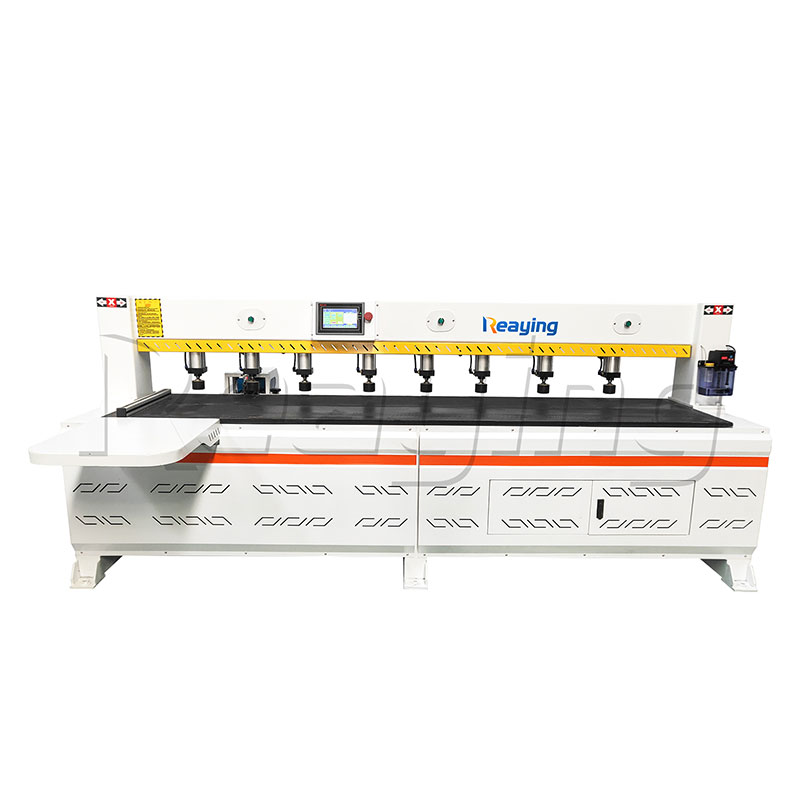

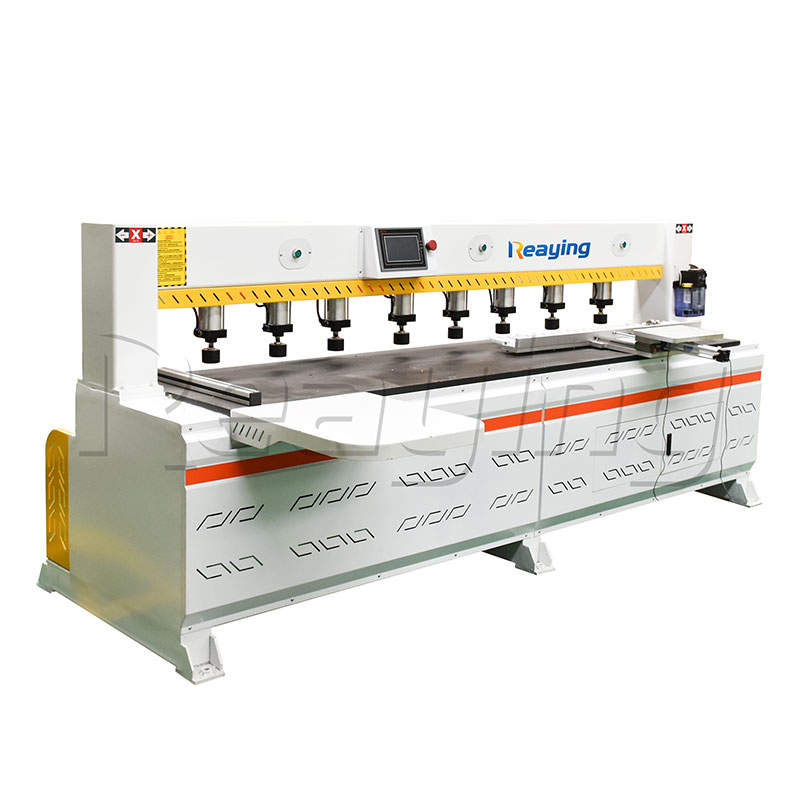

CNC Automatic Wood Panel Side Hole Drilling Machine
Reaying automatic laser side drilling machine is mainly suitable for straight side hole processing of plywood, fiberboard, particle board and other sections to improve production efficiency and product quality. Laser side drilling machines are widely used in the production of panel furniture such as cabinets, wardrobes, office furniture, customized furniture.
Model:
RY-C25S
Function:
Side Hole & Drilling
Input Voltage:
Custom Made
Spindle Power:
2.2KW
Spindle Type:
Air Cooling
Working Area:
2800mm
MCGS customized control system

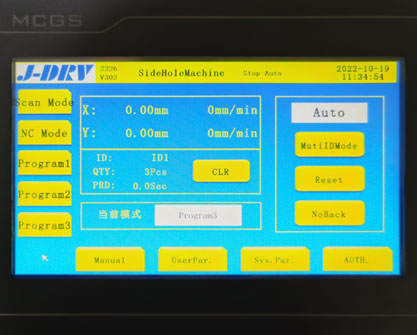

The deep customization system based on MCGS can process data faster, operation is more simply and quickly, and be easy to learn and use.
Spindle and Frequency Converter

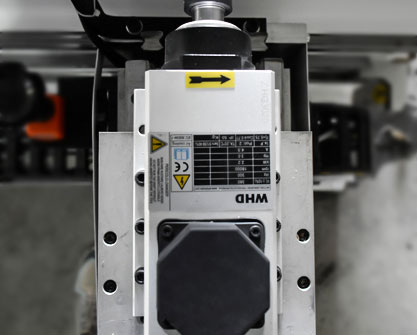

The air-cooled spindle is adopted, which is not limited by temperature, with a maximum speed of 18000rpm, stable operation, low noise and higher cost than the water-cooled spindle. With BEST frequency converter, it has strong anti-interference ability, overvoltage, undervoltage, overcurrent, overload, overheating, phase loss protection, and can display parameter setting, status information, fault code and other information in real time.
Transmission system

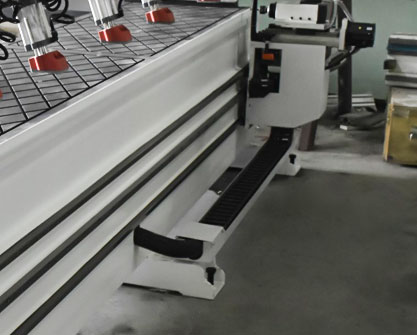

The transmission system adopts double guide rails and chrome-plated grinding grade helical racks, and cooperates with Weide high-power servo motors to ensure smooth operation and high precision.
Laser Scanning Sensor

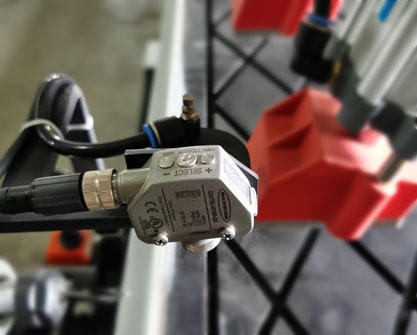

Using the US Banner laser scanning sensor, it can accurately and quickly scan the top holes and complete the side drilling work.
Plate fixing device

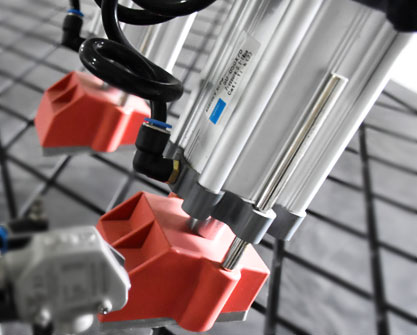

Equipped with rubber oblique cylinder pressure plate to protect the plate from damage. After pressing the processing button, it will automatically drop, firmly press the plate, and automatically lift after finishing processing.
Center point positioning device

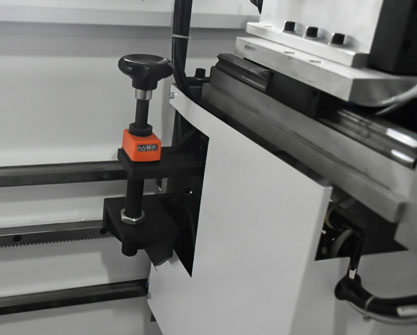

Equipped with a manual adjustment handwheel, when processing plates of different thicknesses, the position of the center point of wood plate can be manually adjusted.
Technical Parameters
| Model | RY-C25S |
|---|---|
| Spindle power | 2.2KW |
| Rpm | 18000 |
| Cooling method | Air cooling |
| Equipment features | Hole in panel furniture, horizontal punch |
| Y-axis working area | 2800mm |
| Control system | MCGS customized system |
| Liner guide | Taiwan HIWIN square liner guide |
| Positioning means | Automatic positioning |
| Driver and motor | WEIDE high precision servo |
| Sensor | Laser head displacement sensor (Banner, USA) |
| Reducer | XIELI brand |
| Voltage | 380V, 3Phase, 50/60Hz |
| Package | 3.46*1.31*1.40m , 400kg |
