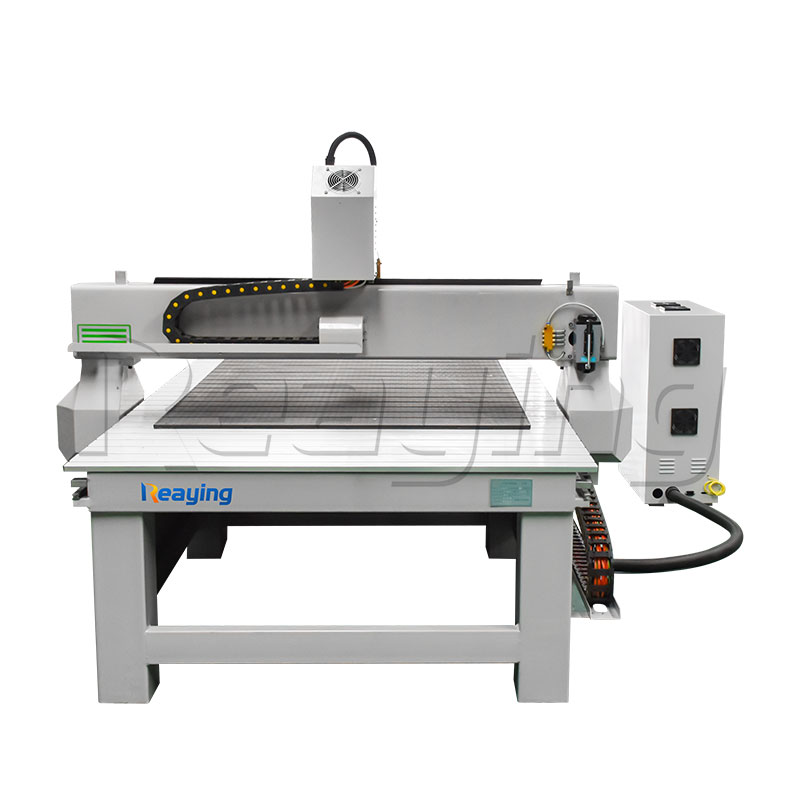

Big Size Wood Carving Machine For Furniture C1325
Model:
RY-C1325
Function:
Engraving & Cutting
Input Voltage:
Custom Made
Spindle Power:
3KW
Spindle Type:
Air Cooling/ Water Cooling
Working Area:
1300*2500mm
Control System
(DSP hand controller is optional) NCStudio control system is suitable for a variety of complex mold processing, advertising and decoration, cutting and other industries, with the advantages of simple and reliable operation, easy to learn. In addition to the manual, stepping, automatic and return to mechanical origin functions, the CNC system also has unique functions such as simulation, dynamic display tracking, Z-axis automatic tool setting, breakpoint memory (program skip execution) and rotary axis machining.

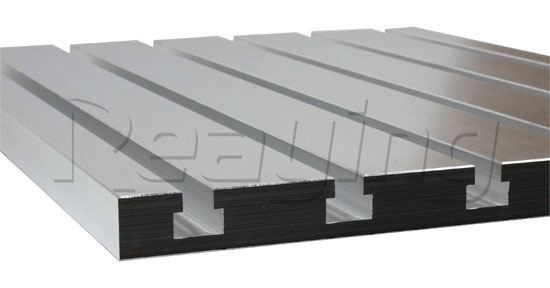

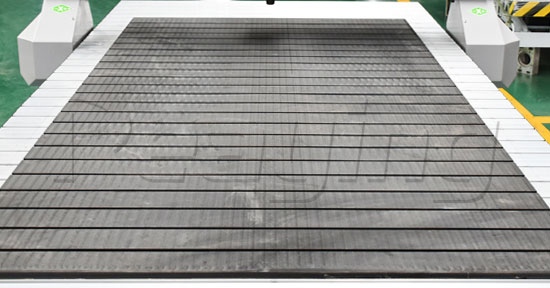

T-slots and PVC table
(Vacuum table is optional) Reaying used aluminum alloy profiles with light weight, high strength, corrosion resistance, small deformation, strong fire resistance and long service life, which maintain the inherent color and luster for a long time.Reaying also used a thickened PVC board with good tensile, flexural, compressive and impact resistance.

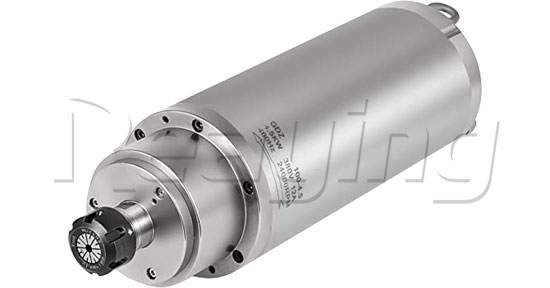

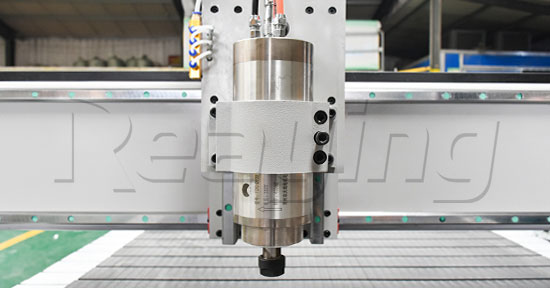

Water-cooling Spindle system
(Air-cooling spindle is optional) Reaying chosen TDG 3.2KW water-cooling spindle which has the advantages of high speed, high precision, large output power and low noise.

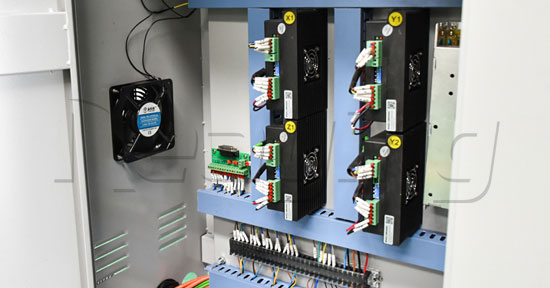

Motor driver system
Leadshine/ Delta/ Yaskawa high-Power pure servo drive motor, high torque, high precision, fast, to ensure the speed and stability of equipment processing and operation.
Technical Parameters
| Model | RY-C1325 |
|---|---|
| Spindle Power | 3KW |
| Working Area | 1300*2500 mm |
| Max Moving Speed (mm/min) | 15000 |
| Max Machining Speed (mm/min) | 10000 |
| Machine Precision (mm) | 0.002 |
| Warranty | 5 YEARS |
Applications & Suitable Materials
The RY-C1325 big size wood carving machine is mainly used for large-size wood panels, cabinet doors, solid wood doors, decorative panels, furniture carving and cutting. It is suitable for solid wood, MDF, plywood, acrylic, PVC and other non-metal materials.
FAQ
What is the working area of RY-C1325?
Working area: 1300*2500mm, designed for big size furniture and panel processing.
What control system does it use?
Standard NCStudio control system; DSP handheld controller is optional.
What spindle configuration is standard?
Standard 3.2KW water-cooling spindle; air-cooling spindle is available as an option.
Is vacuum table supported?
Yes, vacuum adsorption table is optional for firmly fixing large plates.
What industries is this machine for?
It is ideal for furniture factories, decoration companies and woodworking processing plants for large-format carving.
