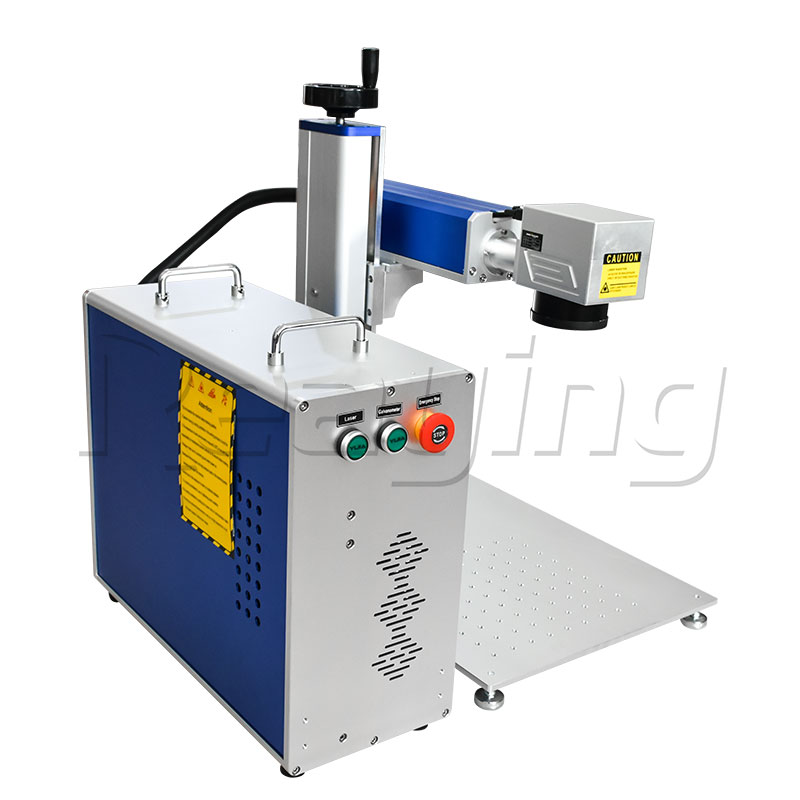

Separate Portable Fiber Marking And Engraving Machine F20B

This separate portable fiber marking and engraving machine F20B adopts a split-type design, with the host and marking head separated, which is convenient to mark large molds, large equipment and heavy workpieces that cannot be moved. The marking head is light and flexible, and can enter narrow spaces for marking, solving the problem of marking large and heavy workpieces. It is suitable for metal marking in mold factories, machinery factories and large equipment maintenance, with clear marking effect and stable performance. The equipment is easy to assemble and disassemble, convenient to carry and transport.

Model:

RY-F20B

Function:

Marking & Engraver & Cutting

Input Voltage:

110V/220V 50/60Hz

Laser Power:

20W / 30W / 50W

Laser Source:

Genuines Raycus

Working Area:

110x110mm

separate portable fiber marking and engraving machine f20b detail

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail02-2

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail02-3

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail02-4

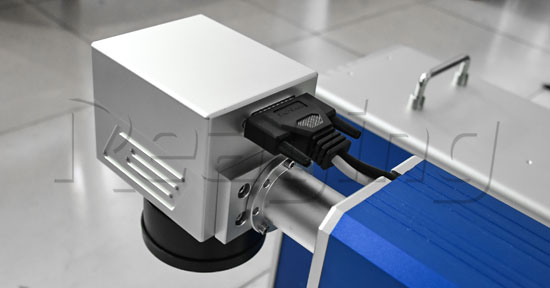

Galvo lens

Equipped with automatic scanning system, friendly operation process.

Filed lens

Compact size. Suitable for harsh environment, friendly interface.

Dynamic focus 3D fiber laser marking equipment for irregular workpiece

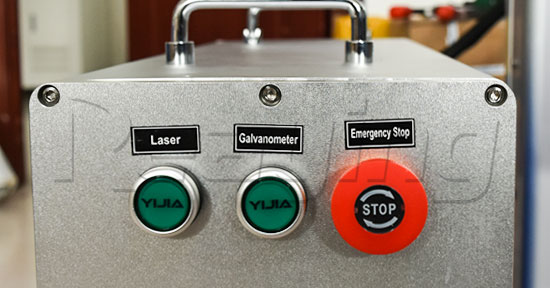

Control button

Humanized control system, easy to learn, safe and convenient, dust proof design.

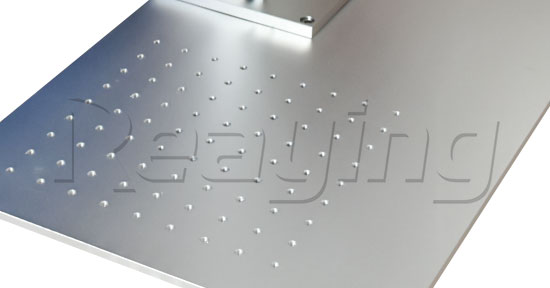

Working platform

Aluminum working table, Flat and smooth.
Free customized position device on the platform, easy to adjust, more convenient.

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail01-3

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail01-4

Laser source

100000 hours lifetime, Raycus/IPG/MAX optional

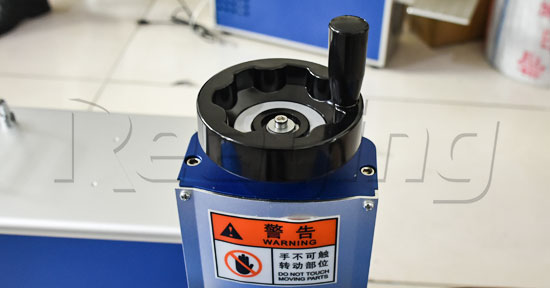

Lifting wheel

Import high quality, easy to adjust.
High precision ruler.

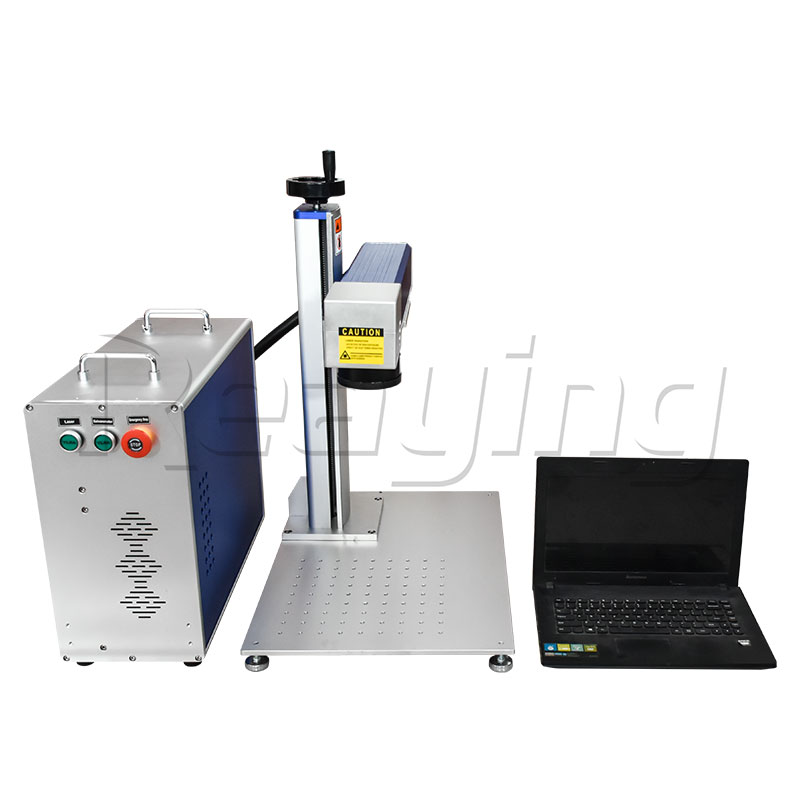

Optional computer system

If you need, the fiber laser will equipped with a Windows 10-64 bit system LENOVO laptop which pre-installed with a free EZCAD control system. Or you can use your own PC, we will help you install the software and input our tested parameters. EZCAD supports WIN7-WIN11 32 or 64 bit system. So we can ensure when you received the machine, you can plug and play.

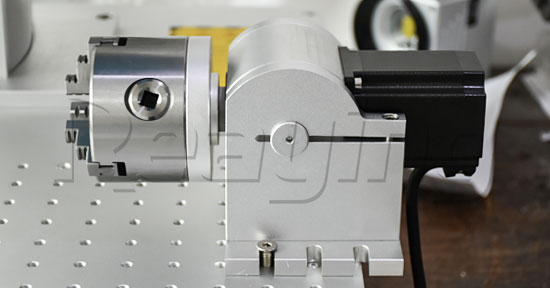

Optional rotary devices

Diameter 80mm rotary device for big size round objects marking…
Diameter 50mm rotary device is especially suitable for rings, bracelets…

Free parts

u disk
Ruler
Foot switch
Power cable
key switch / laser switch

Technical Parameters

Model	RY-F20B
Laser power	20W/30W/50W
Working Area	110x110 mm
Laser Wavelength	1064 nm
Laser module life	>100000hours
Warranty	5 YEARS

Applications & Suitable Materials

The RY-F20B separate portable fiber laser marking machine is specially designed for marking large molds, heavy equipment, large machinery and immovable workpieces. Split-type structure, flexible and portable, widely used in mold factories, machinery plants and equipment maintenance industries.

FAQ

What design does this machine adopt?

It adopts split-type design, host and marking head are separated, suitable for large and heavy workpieces.

What laser power options are available?

20W, 30W and 50W laser power are optional.

What materials can it mark?

It is mainly used for marking various metal materials and parts.

Is it portable and easy to carry?

Yes. Light and flexible marking head, easy to assemble, carry and transport.

Does it include free parts and warranty?

Yes. It comes with complete free accessories and 5 years warranty.
