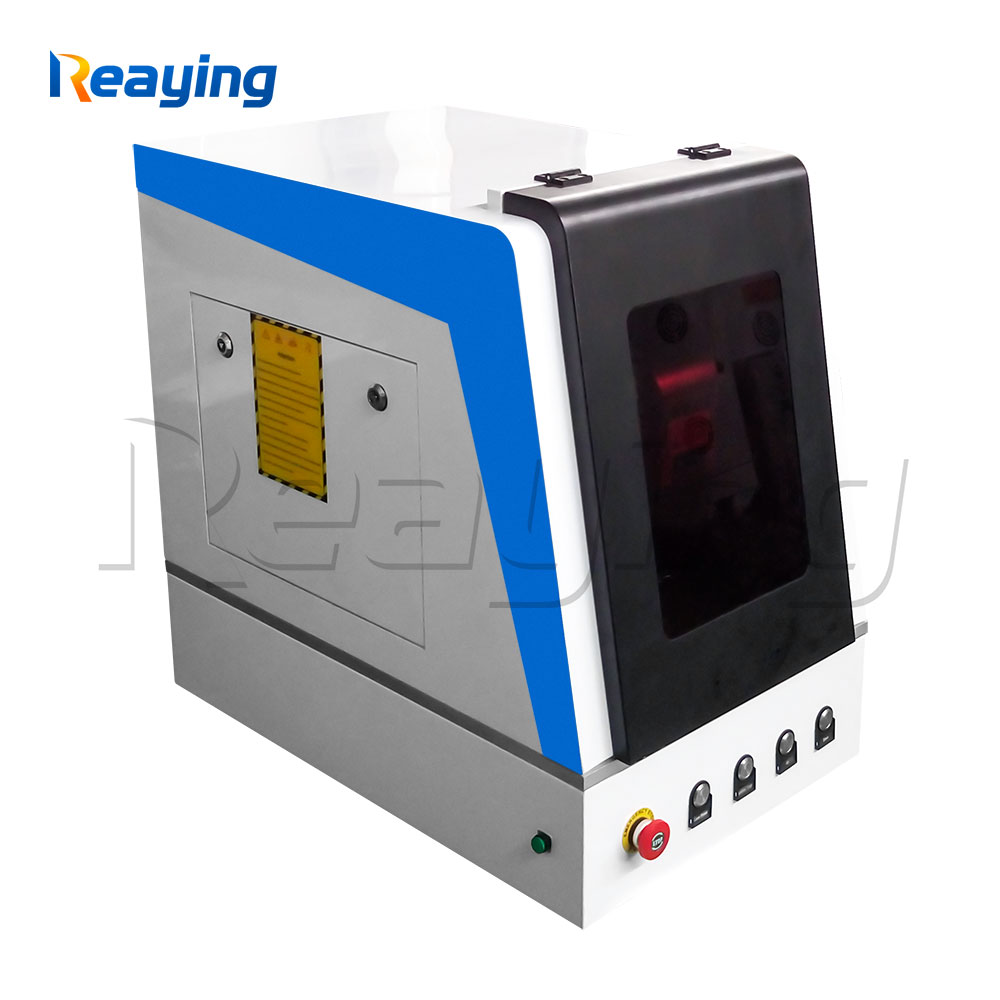

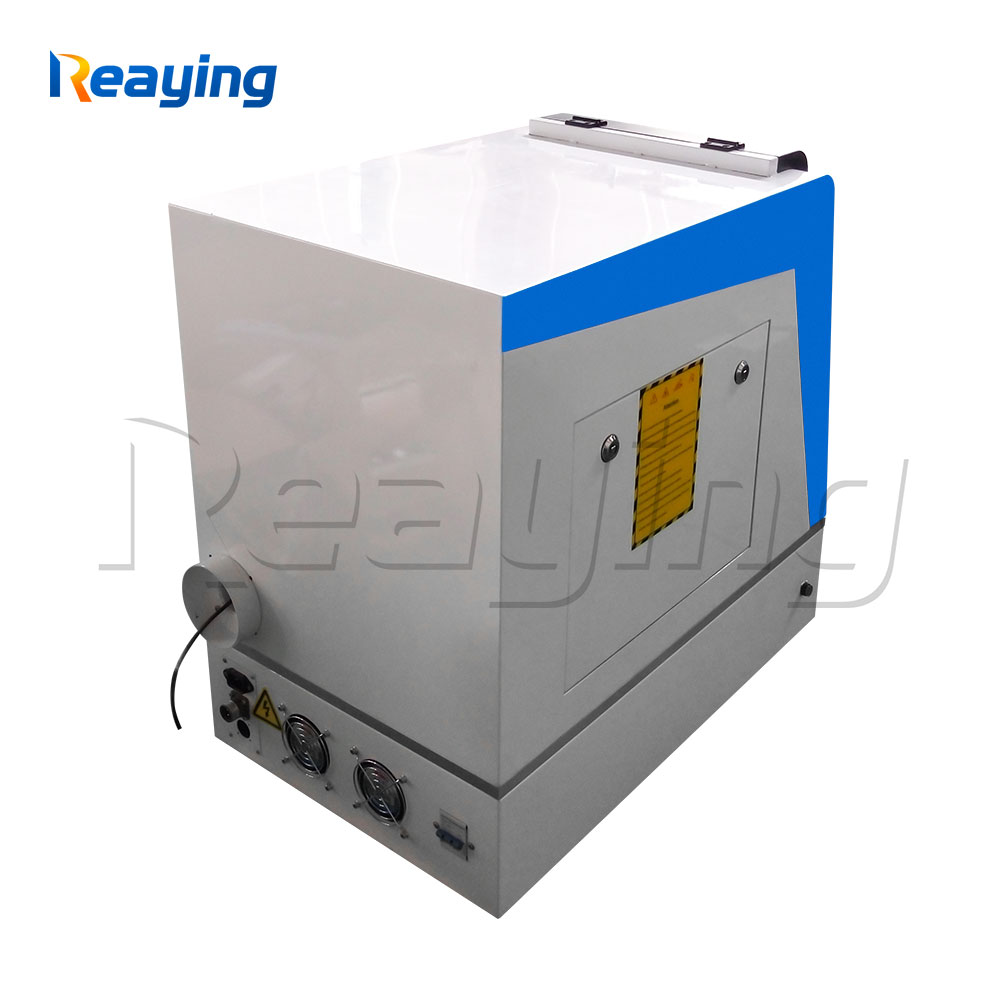

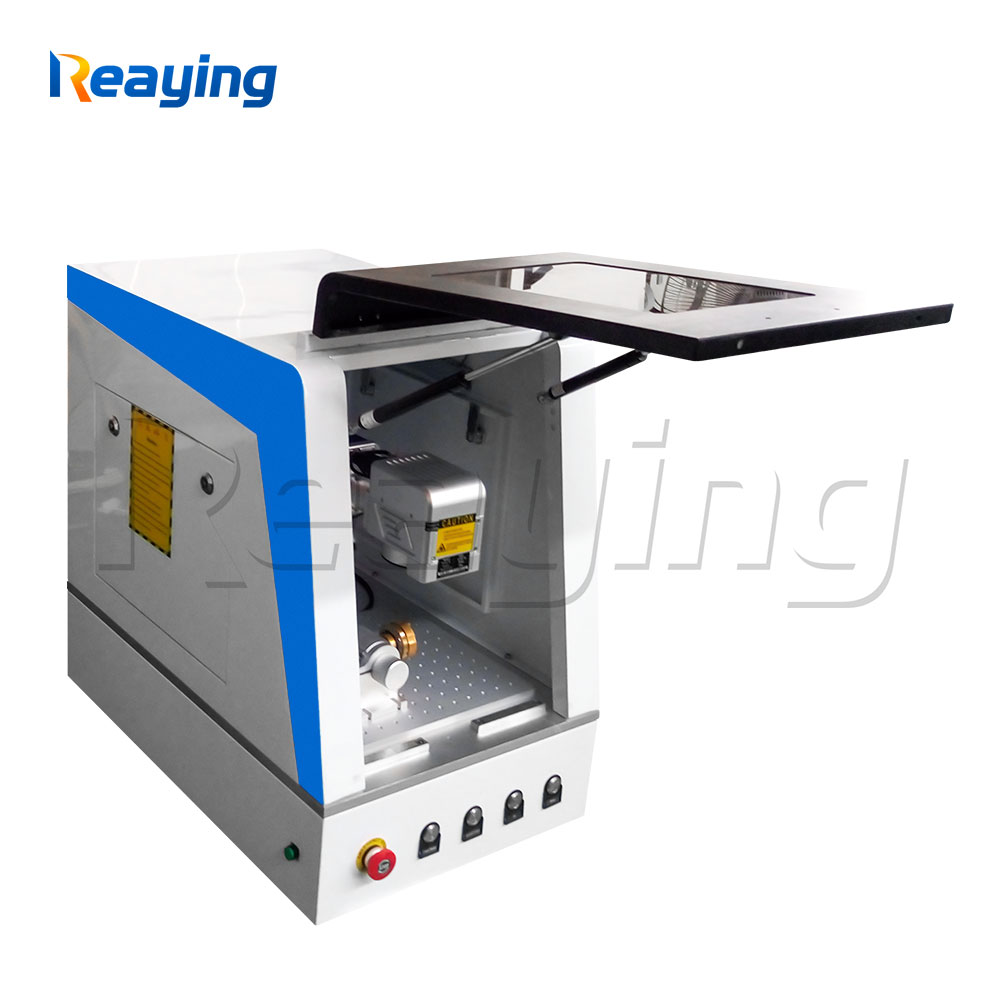

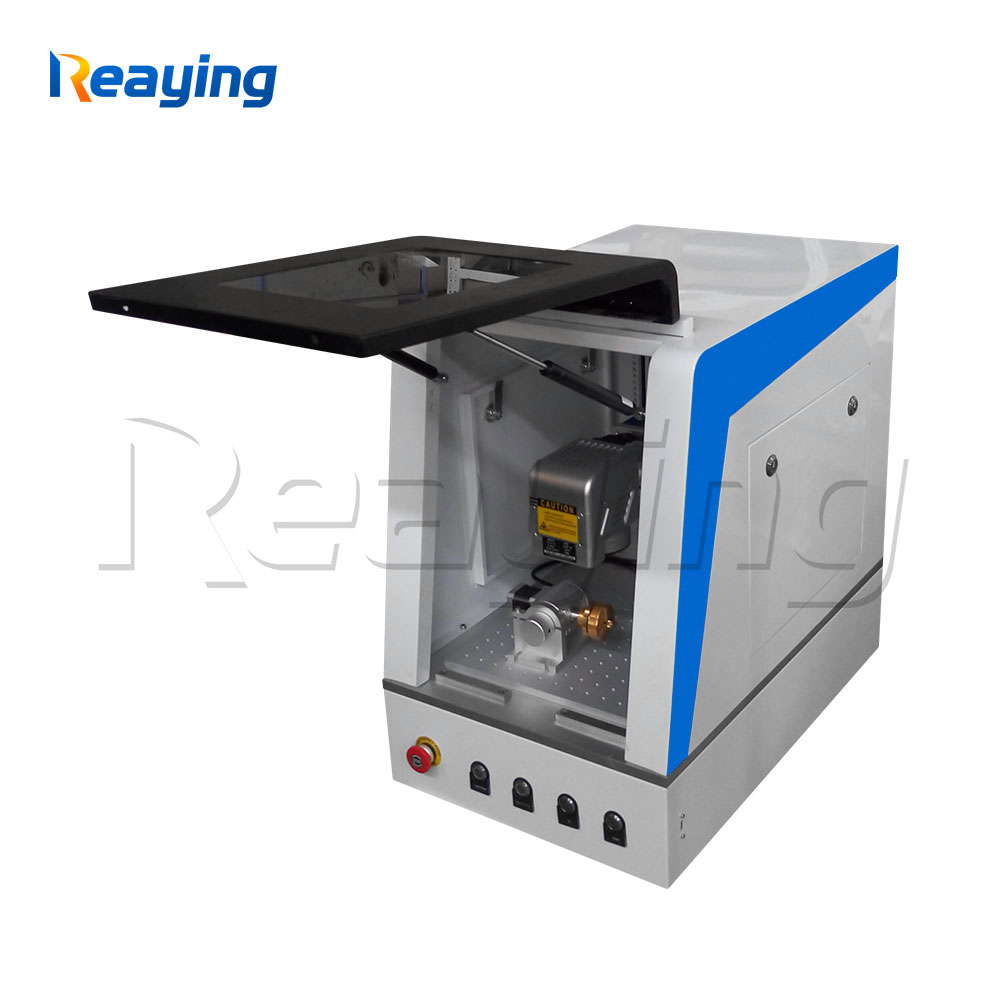

Mini Fiber Laser Marking Machine With Protective Cover
Model:
RY-F20CX
Function:
Marking & Engraver & Cutting
Input Voltage:
110V/220V 50/60Hz
Laser Power:
20W / 30W / 50W / 100W
Laser Source:
Genuines Raycus
Working Area:
110x110mm
(Function Names of Operation Panel)

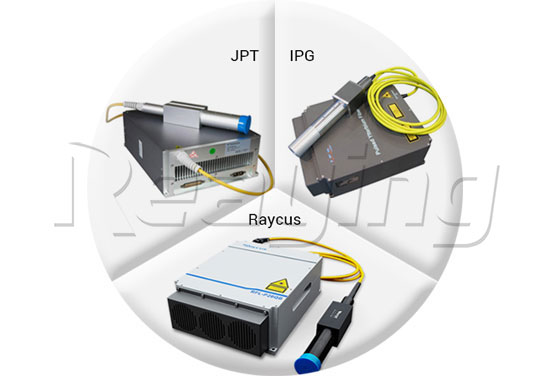

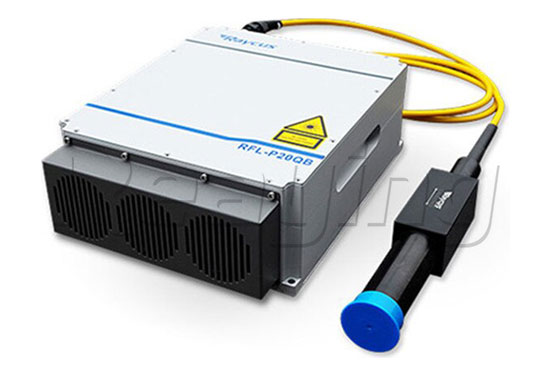

Fiber laser source
High peak power, high single-pulse energy, maintenance-free, stable long-term performance and lifetime is more than 100,000 hours.

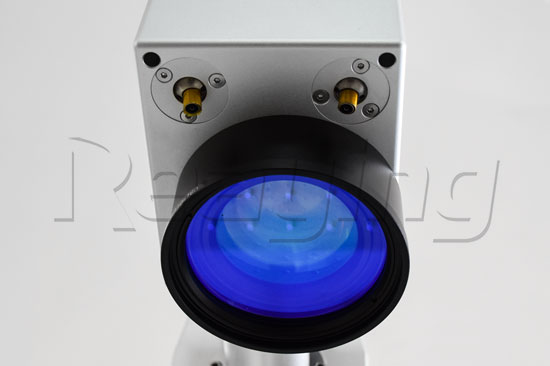

High speed galvo scanner
Reaying fiber laser marker equipped with Sino-Galvo brand double red dots galvo scanner which has the characteristics of small volume, high precision, good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability and easy to find

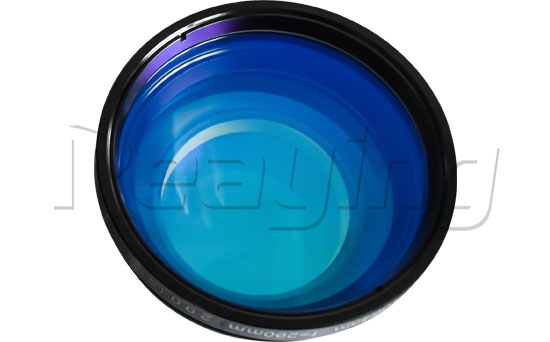

High precision F-theta lens
Working size can be chosen 100x100mm, 150x150mm, 175x175mm, 200x200mm, 300x300mm, 400x400mm.

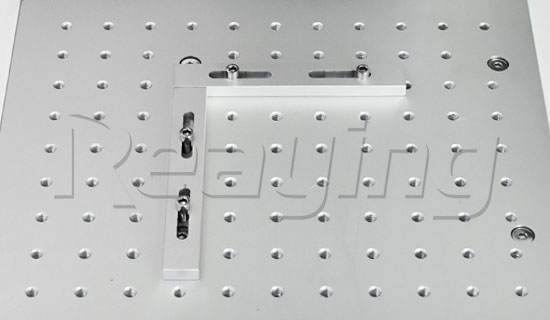

Work bench
Reaying fiber laser marker equipped with the work bench which has positioning hole and positioning bar, the operator can arbitrarily adjust the position of the workpiece to improve work efficiency

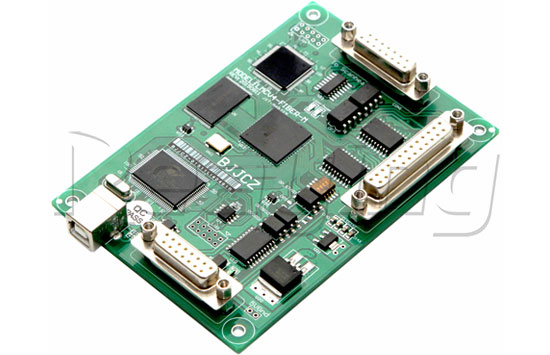

Beijing JCZ control system

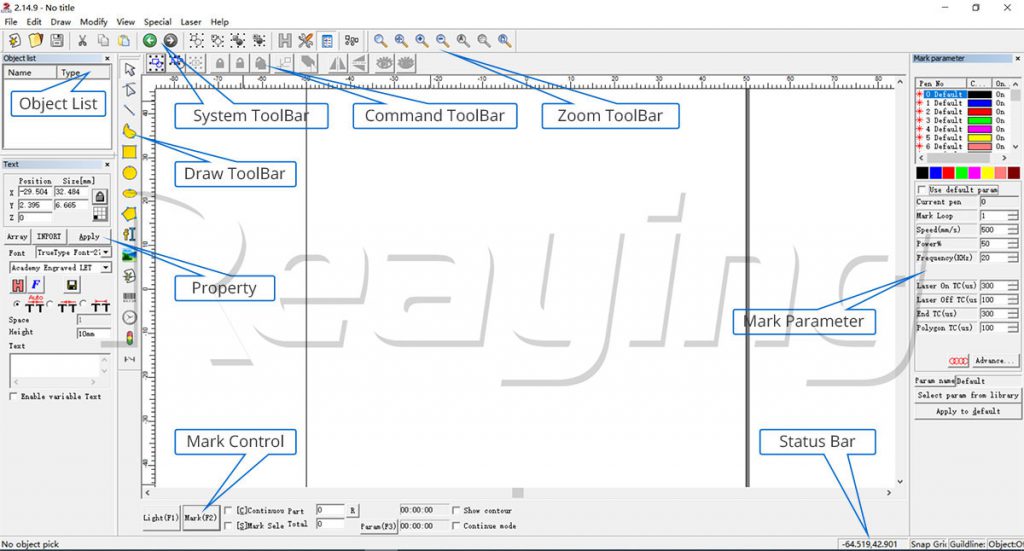

Reaying fiber laser marker equipped with genuine Beijing JCZ control system with powerful functions Ezcad software, stable working, high safety, easy operation and easy to learn. Supported Windows XP/7/8/10 32/64bit operating system.
Industrial Computer
Adopts completed industry computer, EZCAD software has been installed. Our engineer tested and saved the backup parameter, you can plug and play.

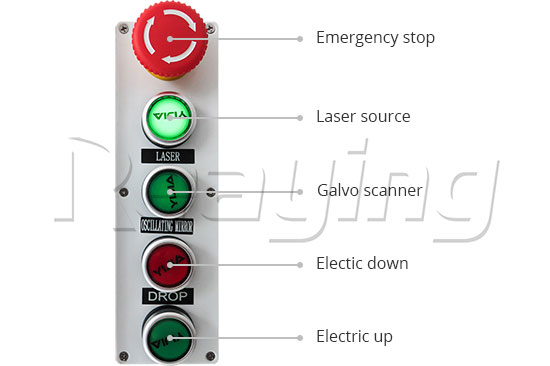

Control buttons
Clearly label, easy operate, equipped with emergency stop button. Ergonomic design for the operator to provide a comfortable and safety working environment. Electric up-down of Z axis, combined with double red light galvo scanner, easier to find right focus length.
Regulated Switching Power Supply
Taiwan MEAN WELL regulated switching power supply, with short circuit protection / overload protection / over voltage protection / overheat protection, using lead-free process, in line with environmental protection RoHS requirements.
Technical Parameters
| Model | RY-F20CX |
|---|---|
| Laser power | 20W / 30W / 50W / 100W |
| Working Area | 110x110 mm |
| Laser Wavelength | 1064 nm |
| Laser module life | >100000hours |
| Warranty | 5 YEARS |
Applications & Suitable Materials

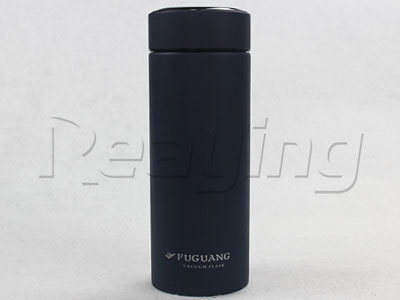

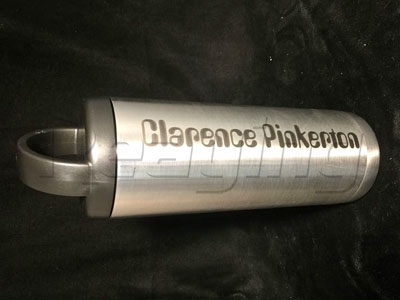

The RY-F20CX mini fiber laser marking machine is widely used for marking small metal parts, hardware, gifts, jewelry and electronic components. With protective cover design, it ensures safe operation in small workshops and laboratories.
FAQ
Does this machine have a protective cover?
Yes. It comes with a protective cover to ensure safe operation and prevent laser radiation.
What laser power options are available?
20W, 30W, 50W and 100W laser power are optional.
What control system does it use?
It uses Beijing JCZ control system with EZCAD software, easy to operate and learn.
Is it mini size and easy to place?
Yes. Compact structure, small footprint, very suitable for small workshops and laboratories.
Is it pre-installed and tested before delivery?
Yes. The industrial computer and EZCAD software are pre-installed and tested, plug and play.
