High Speed Fiber Laser Metal Cutting Machine F1325F
Model:
RY-F1325F
Function:
Cutting
Input Voltage:
Custom Made
Laser Power:
500W-25000W
Laser Source:
Genuines Raycus
Working Area:
1300*2500mm
Laser Source
The best performed and the most famous laser source in China. The laser source lifetime is more than 100,000 hours and almost free maintenance for life.
Laser Head
Famous laser head for metal cutting. Easy to operate and with nice working performance.
Control System
Domestic famous control system for metal cutting.Working stability, widely used and ease operate.
Servo Driver and Motors
Famous servo driver and motors in the world, and widely used in the industry machine. With its stability and working accuracy.
Sawtooth Worktable
Equipped with sawtooth worktable, to put and down heavy metal easier, and to keep materials and products clean enough.
Double driver Rail Guide and Gear
With double drive square rail guide and gears, to keep the machine working stability and accuracy.
DSP controller
DSP controller is clear and easy to operate, even there is some distance from the fiber cutting machine.
Machine Lathe
The lathe is founded by high-quality steel that ensures the high stability ,all the three axises are using imported straight-quadrate rails.
Optional parts

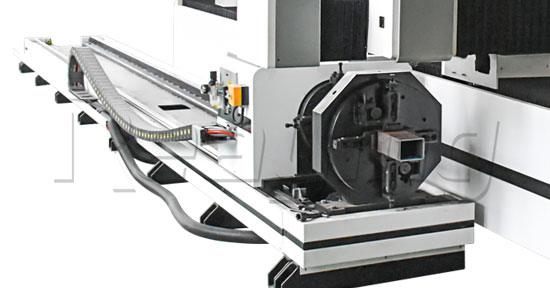

Rotary device for square tube and round tube cutting.

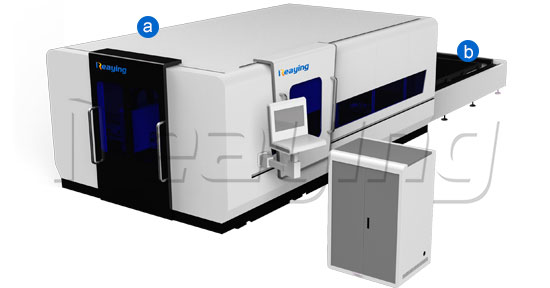

Optional parts
(a) Full enclosed
(b) Exchange working platform
Technical Parameters
| Model | RY-F1325F |
|---|---|
| Laser Power | 500W-25000W |
| Working Area | 1300*2500 mm |
| Laser Type | Raycus (IPG / Nlight) Fiber laser source is optional |
| Laser Wavelength | 1064nm |
| Positioning Accuracy | ≤ ±0.025mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Warranty | 5 YEARS |

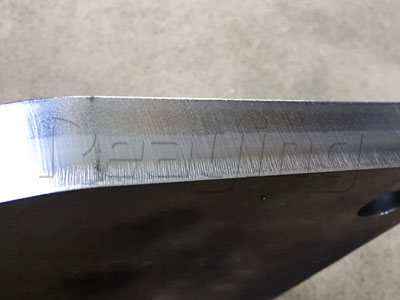

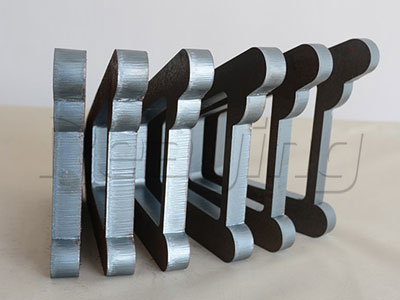

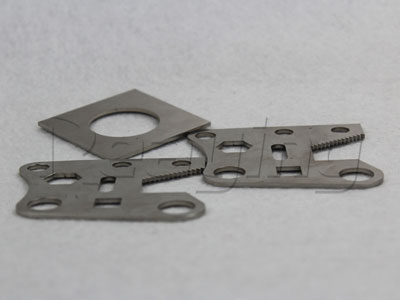

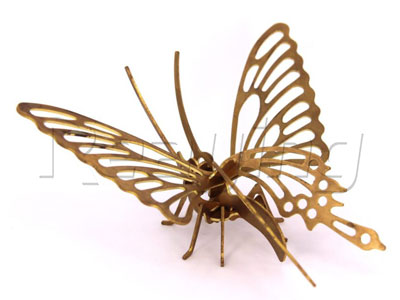

Applications & Suitable Materials
FAQ
What is F1325F used for?
It is a high speed fiber laser machine specially for metal sheet cutting.
What laser power can I choose?
500W to 25000W optional for different metal thickness.
Does it support optional accessories?
Yes, rotary device, full cover and exchange platform are optional.
Is the cutting quality smooth?
Smooth incision without burr, no need secondary processing.
What is the warranty?
5 years full machine warranty for long-term stable use.
