4+1 Axis Electro-Hydraulic Servo CNC Press Brake – Precision and Efficiency for Complex Bending Tasks

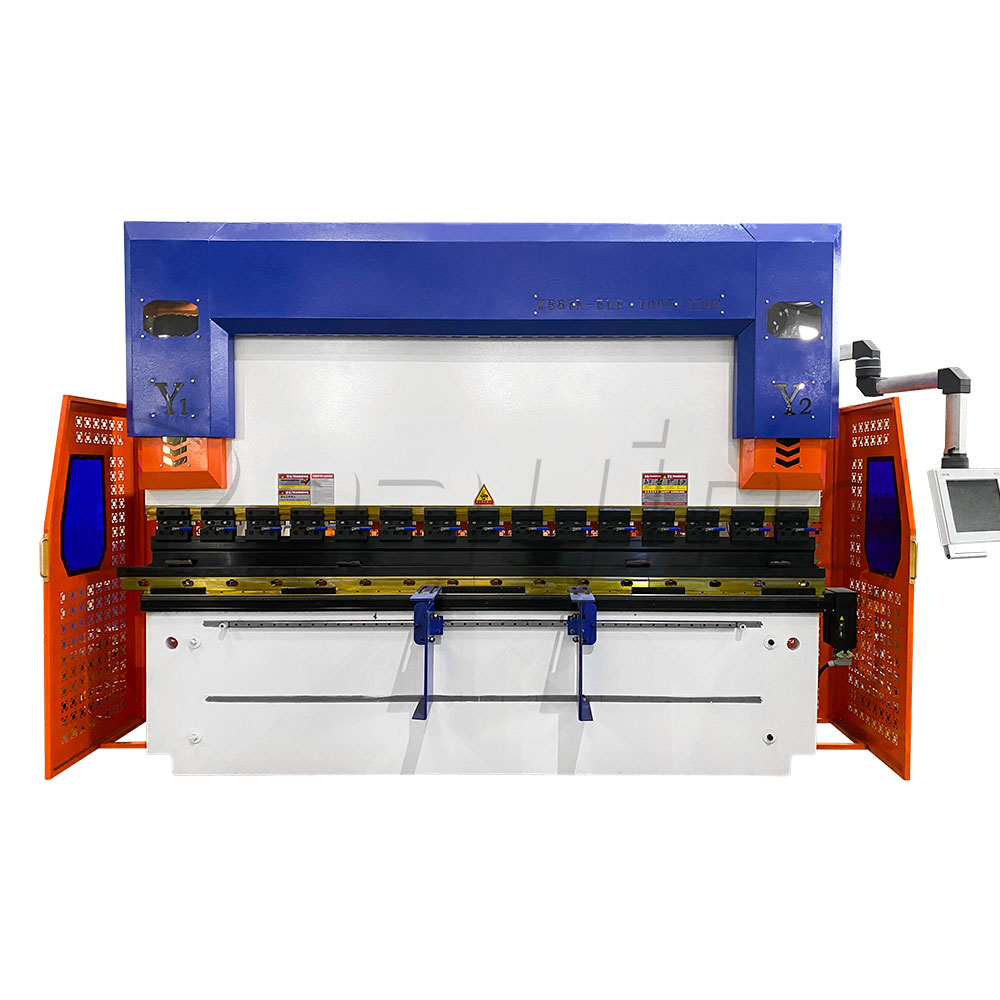

This 4+1 axis electro-hydraulic servo CNC press brake is a high-precision sheet metal bending machine designed for complex and multi-angle forming tasks. Equipped with an advanced electro-hydraulic servo synchronous control system, it delivers exceptional bending accuracy, stable performance, and user-friendly operation. The machine efficiently processes carbon steel, stainless steel, aluminum, copper, and other metal sheets, making it ideal for applications in metal fabrication, cabinet manufacturing, lighting, furniture production, and construction engineering. It is a reliable solution for modern sheet metal plants aiming to boost production efficiency and forming quality.
Model:
RY-PB41
Function:
Sheet Metal Bending & Forming
Input Voltage:
380V 3Ph 50Hz (Customizable)
Max Bending Force:
100T / 160T / 200T (Optional)
Max Bending Length:
2500mm / 3200mm / 4000mm (Optional)
Axis Configuration:
4+1 Axis Electro-Hydraulic Servo

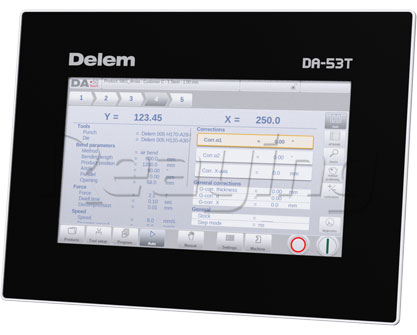

The bending machine CNC system：KT15/DA53T/DA66T optional
High resolution 10 “full-color LCD widescreen display. Industrial grade PCT tempered glass touch screen. ● Scratch resistant and glove operated. The standard number of control axes is Y1, Y2, X, and compensation. The pin ports of the DA-50 series are fully compatible, Upgrade and replacement can be completed within one minute. ● Free standard configuration of Profile-53T offline programming software.
Hydraulic system:

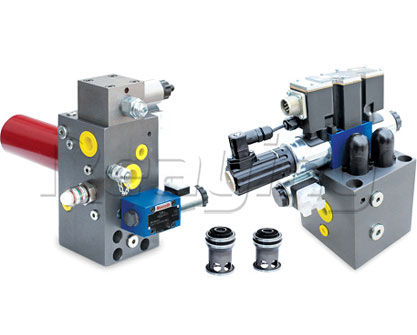

REXROTH bending machine dedicated integrated hydraulic valve group reduces pipeline installation, overcomes oil leakage, and improves the machine performance The working stability of the bed makes the appearance of the machine tool simple and beautiful. SUNNY high-pressure gear pump from Germany. Equipped with a fast and slow speed conversion balance valve to ensure system stability. Overload overflow safety protection. Visual display of oil level height. Continuous operation under rated load, with no leakage in the hydraulic system and stable machining accuracy. The fuel tank is coated with galvanized material to ensure the long-term cleanliness and stability of the hydraulic system.
Grating ruler from Italy GIVI
Slider position signal is feedbacked to controller by Grating ruler,then the CNC Controller adjusts the amount of fuel tank by changing the synchronous valve opening size,hereby controlling the slider ( Y1,Y2) running on the same frenquency ,maintaining the parallel state of the worktable
Robust machine body

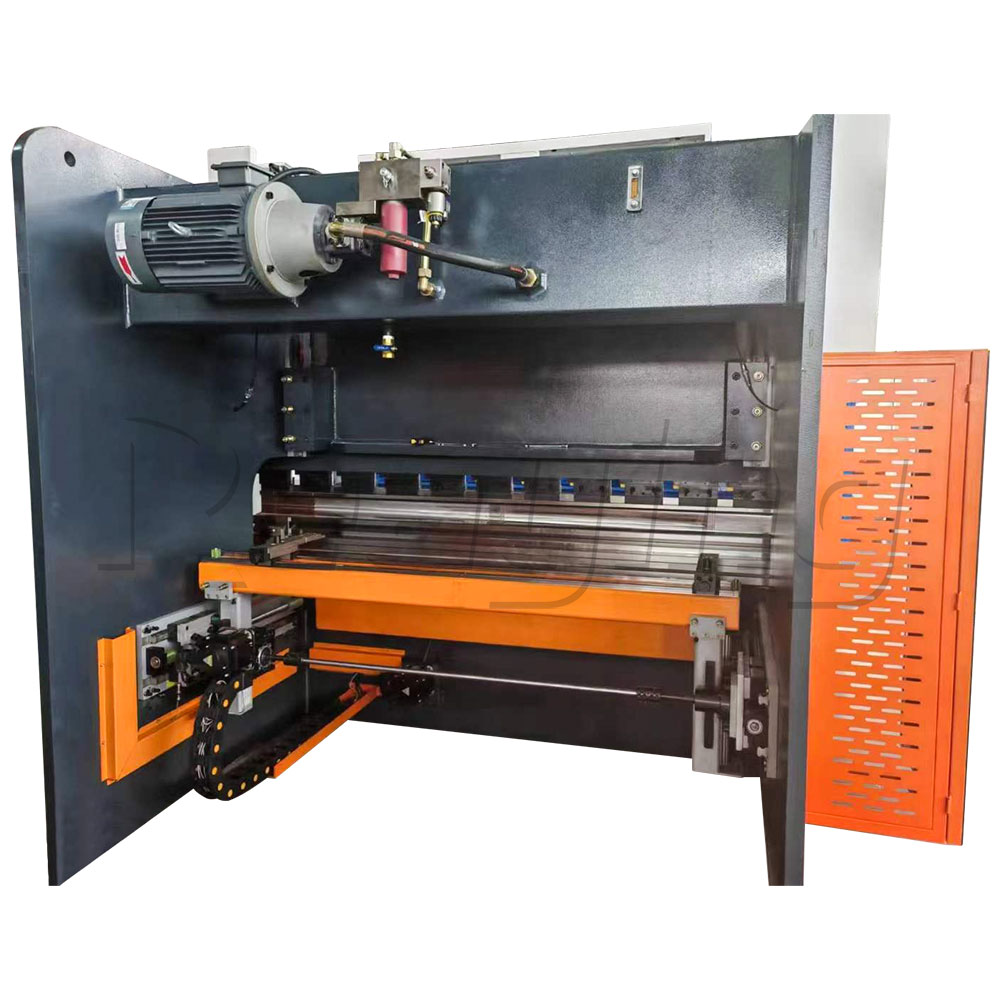

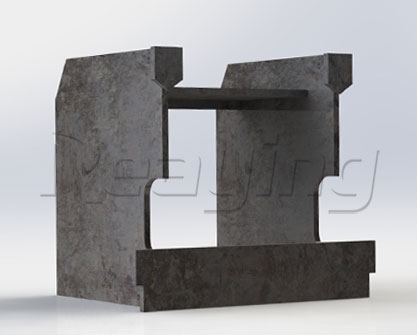

The frame of the machine is composed of a fuel tank connected to the wall panels on both sides and welded to the workbench support plate to form a frame. The welding of the frame directly determines the basic strength of the machine.
main servo motor

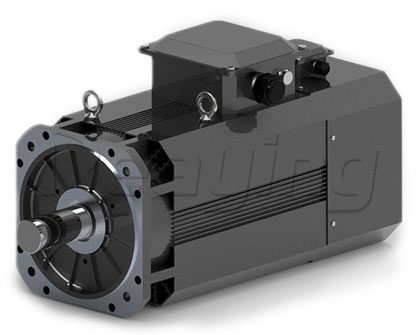

Advanced control algorithm: main servo motor adopts advanced control algorithm, which can realize precise control of the position, speed and acceleration of the motor. – High-precision encoder feedback: Equipped with a high-precision encoder feedback system, which further improves the control accuracy and response speed of the motor, ensuring the accuracy and stability of the bending proc
Back gauge

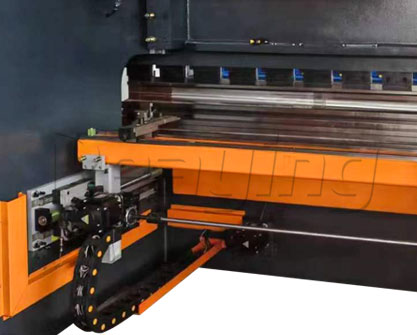

Equipped with Taiwan Hiwin ball screw and linear guide, Z-axis servo motor drive, cross beam with double linear guide. 1. The adjustment of the rear material is driven by a servo motor 2. The rear material screw adopts precision ball screw positioning and linear guide support. 3. H-type synchronous belt synchronous wheel transmission has high transmission accuracy and low noise. 4. Equipped with adjustable gear finger holders that can be adjusted vertically and horizontally. 5. The rear material crossbeam is driven by a servo motor, which can achieve the rise and fall of the entire crossbeam.
Press brake molds

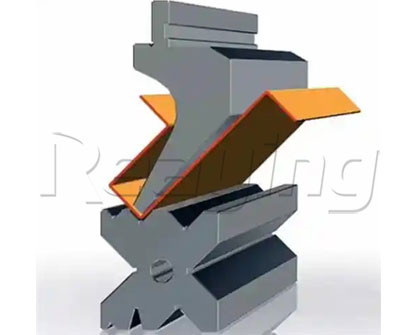

The upper and lower molds are usually made of high-strength alloy steel and other materials, which have the characteristics of high hardness, good wear resistance, and high compressive strength to ensure stable shape and accuracy during long-term use. equipped with a quick clamping device as standard, reducing the labor intensity of workers and improving production efficiency. Equipped with segmented upper molds of varying lengths, they can be assembled into a certain width according to the requirements of the workpiece to accommodate the addition of special workpieces Work needs. A set of upper molds with a total height of 150mm. Lower mold: A set of concentric lower molds with double V-slots, and the slot size can be customized according to customer requirements.
Electrical Parts

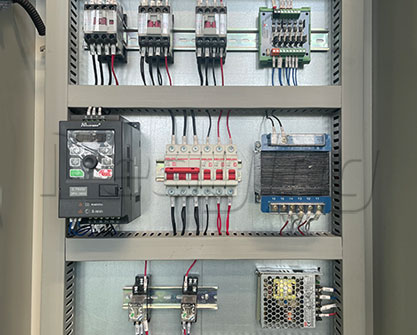

Our machines incorporate authentic Schneider components from France, guaranteeing stability, durability, and extended lifespan. All electrical components are internationally renowned brands, safe, reliable, and anti-interference. The movable foot switch is easy to operate and has an emergency power outage function. The power cord of the foot switch can reach the entire length of the machine tool.
Technical Parameters
Model | RY-PB41-100T | RY-PB41-160T | RY-PB41-200T |
|---|---|---|---|
Max Bending Force | 1000 kN | 1600 kN | 2000 kN |
Max Bending Length | 2500mm / 3200mm | 3200mm / 4000mm | 3200mm / 4000mm |
Max Bending Thickness | 10mm | 12mm | 16mm |
Stroke Length | 200mm | 250mm | 250mm |
Opening Height | 420mm | 460mm | 460mm |
Backgauge Travel | 600mm | 600mm | 600mm |
Axis Configuration | 4+1 Axis | 4+1 Axis | 4+1 Axis |
Controller | CNC System | CNC System | CNC System |
Input Voltage | 380V 3Ph 50Hz | 380V 3Ph 50Hz | 380V 3Ph 50Hz |
Warranty | 5 Years | 5 Years | 5 Years |
Samples
This kind of machine is fit for below material: carbon steel, stainless steel, galvanized sheet, aluminum sheet and other kind of metal sheet.
Applications & Suitable Materials
The 4+1 axis electro-hydraulic servo CNC press brake is widely used for high-precision bending and forming of carbon steel, stainless steel, aluminum, copper, and alloy sheets. It is ideal for applications in metal fabrication workshops, cabinet manufacturing, kitchen equipment, lighting fixtures, furniture production, and construction engineering.
FAQ
What is the advantage of a 4+1 axis press brake?
The 4+1 axis configuration allows for independent control of multiple axes, enabling more complex, multi-angle bending tasks with higher precision and repeatability compared to basic 2-axis models.
What materials can this machine process?
It is suitable for most common metal sheets, including carbon steel, stainless steel, aluminum, copper, and various alloys, supporting different thicknesses according to the machine tonnage.
Is the CNC controller easy to use?
Yes. The intuitive touchscreen CNC controller supports 2D/3D programming, multi-language operation, and program simulation, making it easy for operators to set up and run jobs.
What safety features does it have?
The machine is equipped with safety light curtains, two-hand control, emergency stop buttons, and overload protection to ensure operator safety during operation.
Can I get custom tooling for special bending needs?
Yes. We provide both standard and custom punch and die sets to meet your specific forming requirements.
