Unlocking the Power of UV Printing: Efficient and Eco-Friendly Digital Printing Technology
UV printing is an efficient, environmentally friendly and widely applicable digital printing technology that can realize direct color printing on the surface of various materials. Reaying UV flatbed printer adopts high-quality UV curing system and professional nozzles, with high precision, bright colors, fast curing and strong adhesion. It supports printing on acrylic, glass, metal, wood, ceramic, leather, PVC, KT board and other materials, with waterproof, sun-proof, scratch-resistant and wear-resistant features. The printing process does not require plate making, supports small-batch personalized customization, and is environmentally friendly without harmful emissions. It is widely used in advertising signs, craft gifts, home decoration, electronic product shells, packaging and other industries. The machine has stable performance, simple operation, high efficiency and low cost, helping enterprises achieve diversified and customized production.
Model:
RY-1801/RY-1802/RY-1601/RY-1602
Function:
Input Voltage:
Custom Made
Color:
Four color(C/M/Y/K)
Ink tank capacity:
1500ml/ Color
Printing width:
1850mm

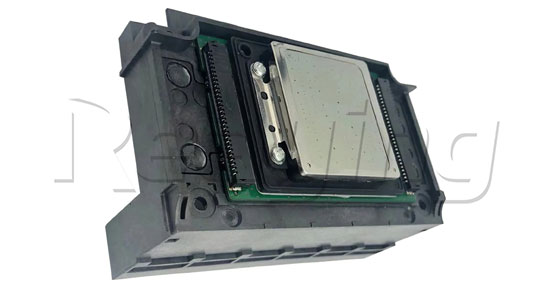

Printhead Introduction
Epson printhead
RY-1602 with two heads ; RY-1601 with one head.
180 nozzles per color, resolution 360*2880dpi;
Higher speed and stable.
Adopt 12FULL smartly printing technolog. Ink droplet changing technology.
Color gradient performance well

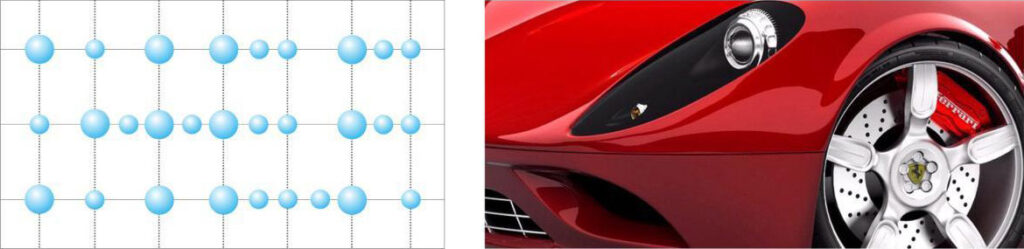

Ink droplet volume changing from 1.5pl to 5pl:
Double 4 colors printing, 3 kinds of volume ink droplets(Big, middle, small)jetting alternately, minium droplets 1.5pl, image performance well, without any pellet feeling.
Greyscale level print technology :
Greyscale level print technolgy can achieve better colors, smoother gradient effect, and clear letters/lines and complex details without decreasing print speed.

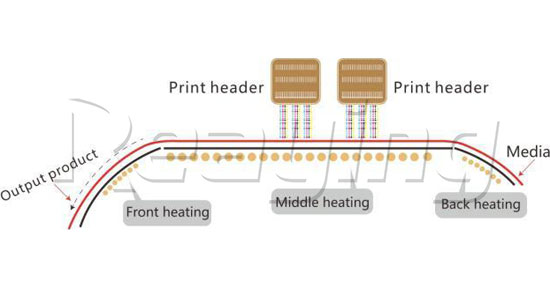

Three-stage heating synchronous control printing platform
Three-area heating system
Automatically heat inks to target temperature, improved inks stainability and stability.
Back heater: Before printing, heat media in advance.
Middle header : Platform heater: Heating media to improve inks stainability.
Front heater: After printing, drying process.
Technical Parameters
| Model | RY-1802 | RY-1801 | RY-1602 | RY-1601 | |
|---|---|---|---|---|---|
| Print Technology | |||||
| Printhead Type | Epson i3200 E1/A1 | ||||
| Printhead Number | Two | One | Two | One | |
| Print Resolution | 1440dpi | ||||
| Printhead height | 2mm-3mm | ||||
| Cleaning | Automatically cleaning, Flash , Moisturized | ||||
| Print speed | |||||
| Different modes | Production 4Pass | 39㎡/h | 20.76㎡/h | 39㎡/h | 20.76㎡/h |
| Precision 6Pass | 24㎡/h | 12.66㎡/h | 24㎡/h | 12.66㎡/h | |
| High quality 8Pass | 20.2㎡/h | 10.59㎡/h | 20.2㎡/h | 10.59㎡/h | |
| Ink system | |||||
| Ink | Type |
Eco solvent ink/ Water based ink/ dye sublimation ink |
|||
| Color | Four color(C/M/Y/K) | ||||
| Ink tank capacity | 1500ml/ Color | ||||
| Supply | Negative pressure CISS Bulk ink | ||||
| Media | |||||
| Printing width | 1850mm | ||||
| Media Type |
PhotoPaper, Cavas, Car sticker, Reflecting materials, PVC film, Sublimation paper |
||||
| Max weight | 40Kg | ||||
| Disposition | |||||
| Take up | Standard | ||||
| Heating system |
Front/ Middle / Back heating, controlled by smart board |
||||
| External Dryer | Synchronous dry fans | ||||
| Operation | |||||
| Language | English/ Chinese | ||||
| PC System | Windows XP/ Win 7 | ||||
| Environment | Temperature:18-25℃ Humidity:35-65% RH | ||||
| Printing | |||||
| Interface | 1000M Network | ||||
| RIP | Maintop/ Photoprint/ Wasatch | ||||
| More | |||||
| Power supply | AC-220V,50Hz/60Hz | ||||
| Power(W) | Min:32W, Max:2300W | ||||
| Noises | Min< 32db; Max<= 65db | ||||
| Machine size(LxWxH) | 2580mm×730mm×1475mm(LxWxH ) | 2380mm×730mm×1475mm(LxWxH ) | |||
| N.W(kg) | 200Kg | 195Kg | 180Kg | 175Kg | |
| Packing size(LxWxH) | 2746mmx750mmx625mm(LxWxH) | 2546mmx750mmx625mm(LxWxH) | |||
| G.W(kg) | 250Kg | 245Kg | 230Kg | 225Kg | |
Application Field Introduce
lndoor and outdoor poster
[Media : Photopaper.PP. Car Sticker、cold lamination film、Indoor Vinyl paper , etc]
Wallpaper making & Decorative Painting
[Media : wallpaper base malerial & oill canvas. non-woven fabric ,etc]
Graphic design
Print out
Outdoor display
Graphic design
Print out
Outdoor display
Sublimation Transfer
[Media:Heat-transfer paper,etc]
Graphic design
Print out
Heat Transfer
Curtain products
Mouse pad finished product
Pillow product
Higher precision at mechanical design
1. Lifting capping station
Capping go up and down with aguid rail , better to capping head.
2. Manul adjustment
Capping station could be adju-stable by manual under the sta-tus of without power supply.
3. Media detector
When media is going to use up，system could pause pri-nting job.
4.Media touching switch
When carriage touch the me-dia,switchs could be on,and system emergency stop printing.
5.Printhead height adjustment
You can adjust the height betw-een head plate and media by manual.
6. Platform adjustable
Platform horizontal level could be adjustable.
7.External fans and heater
One external heater and dryer fans was integrated in one part.
8. Heating control board
Front / middle / back heating co-uld be controlled by a smartboard.
9.Collision capping station
Single head machine adopt coll-ision capping station.
10. Subtank
lnk supply system, stardard inklevel could be kept, and betterink flowing.
