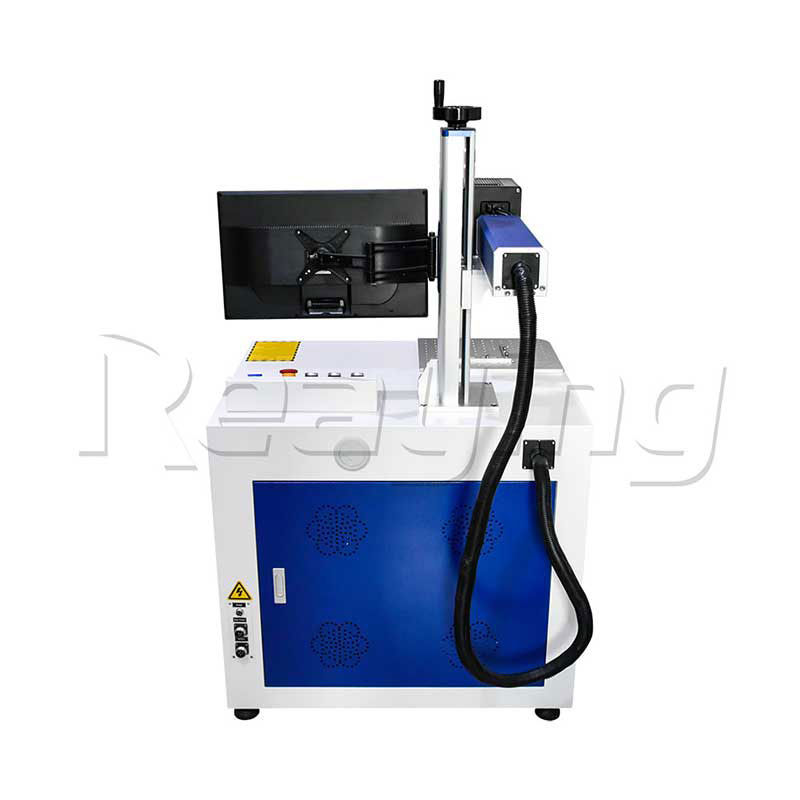

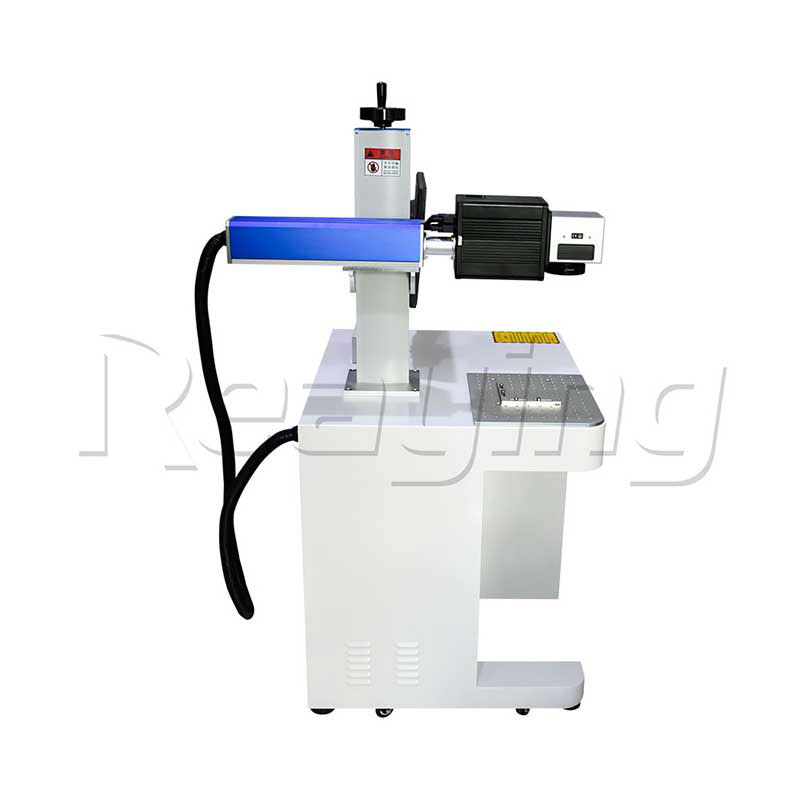

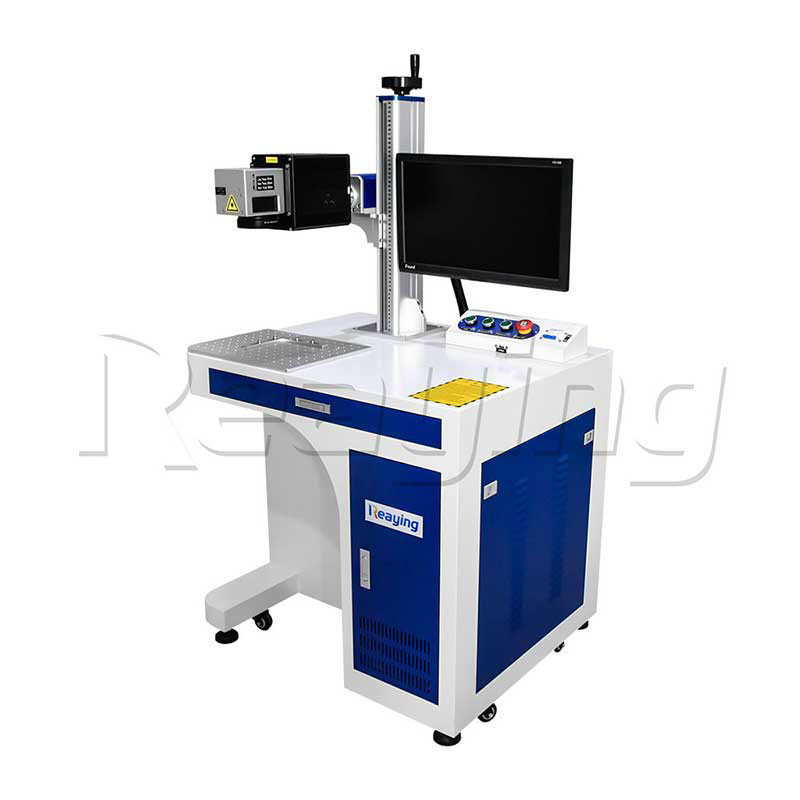

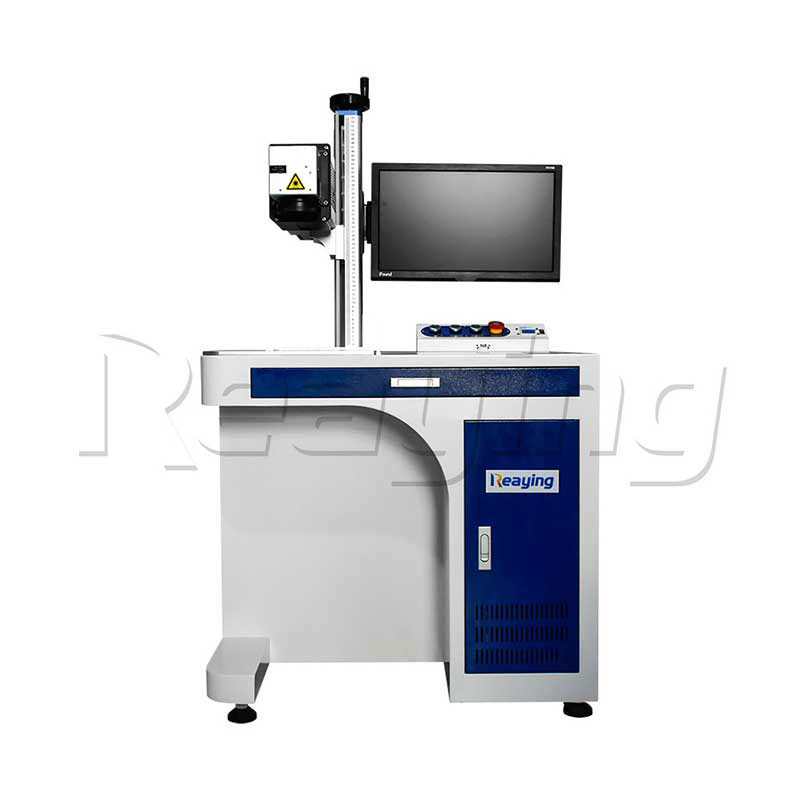

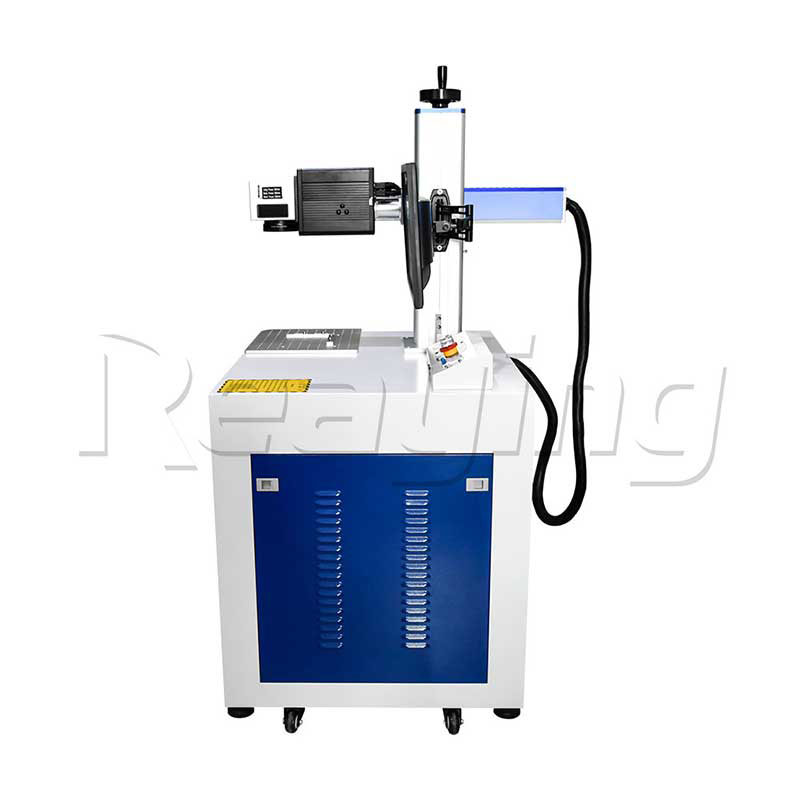

3D Fiber Laser Metal Marking And Engraving Machine For Curve Metal
Model:
RY-F20A-3D
Function:
Marking & Engraver & Cutting
Input Voltage:
110V/220V 50/60Hz
Laser Power:
20W / 30W / 50W / 100W
Laser Source:
Genuines Raycus
Working Area:
110x110mm

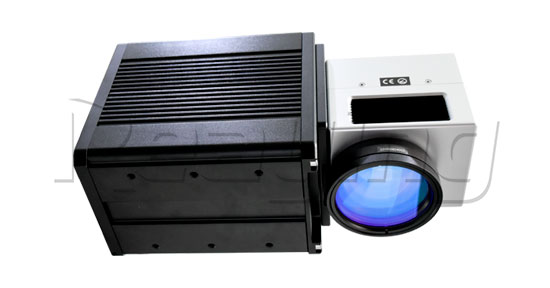

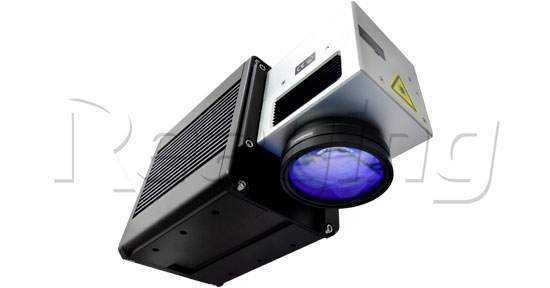

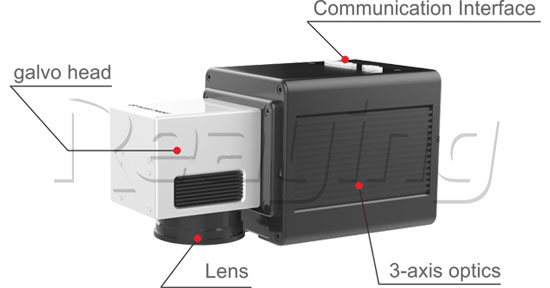

CK Galvanometer Scanning system
1. The 3D galvanometer has the characteristics of small size, high positioning accuracy, fast marking speed and strong anti-interference ability.
2. In the dynamic marking process, the marking line has high accuracy, no distortion, uniform power, no distortion of pattern, and its comprehensive performance has reached the leading level in the same industry.

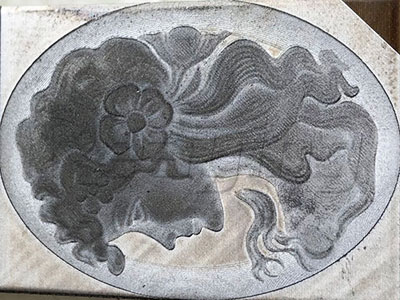

3. By changing the position of the focus axis, deep sculpture can be carried out, which can be used in 3D applications such as relief.

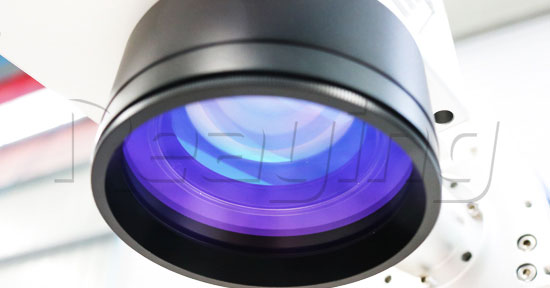

Filed Lens
Compact size. Suitable for harsh environment, friendly interface.

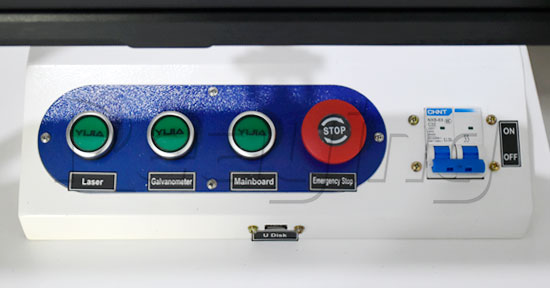

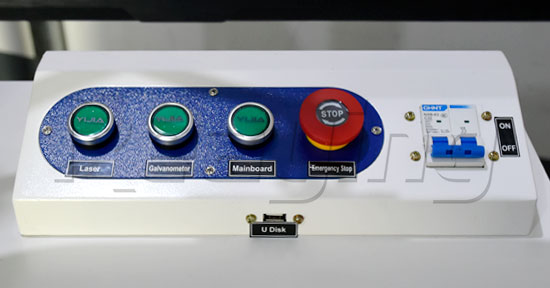

Control Button
Clearly label, easy operate, equipped with emergency stop button. Ergonomic design for the operator to provide a comfortable and safety working environment.

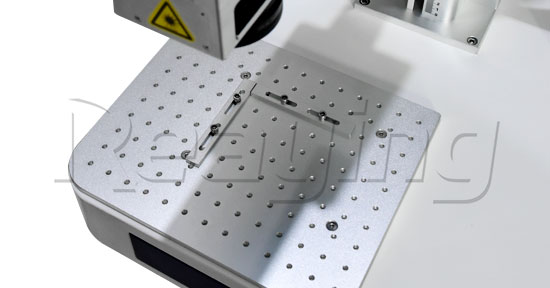

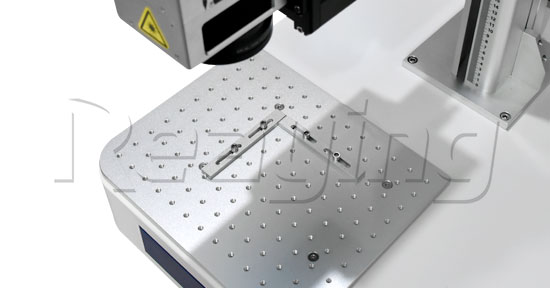

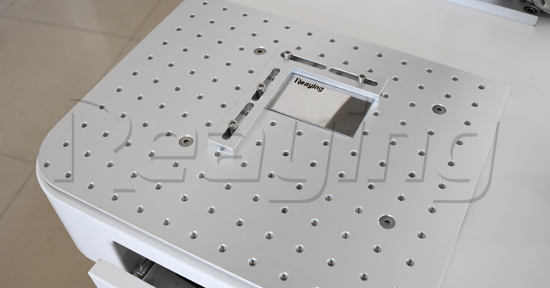

Working Platform
Aluminum working table, Flat and smooth.
Free customized position device on the platform, easy to adjust, more convenient.

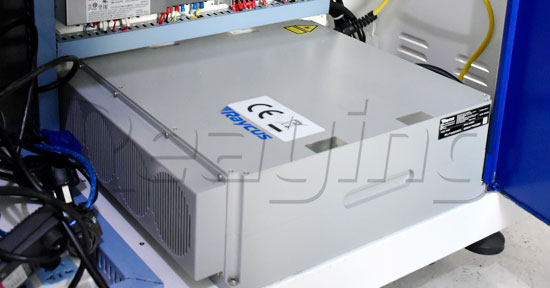

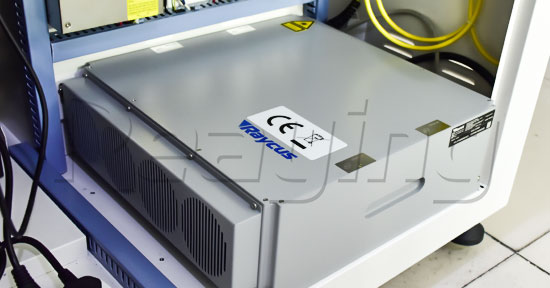

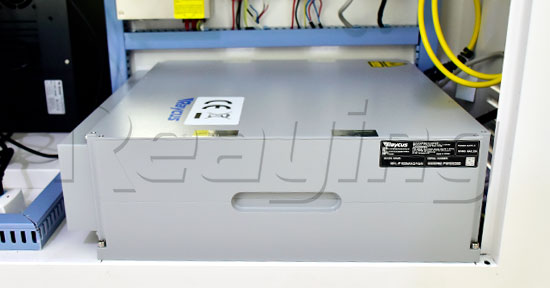

Laser Source
The laser source is from Raycus, one of the good quality fiber laser manufacturer in China .The failure rate is much lower than other brands. It’s performance is stable, the lifetime is 100000 hours, and the warranty is 2 years.

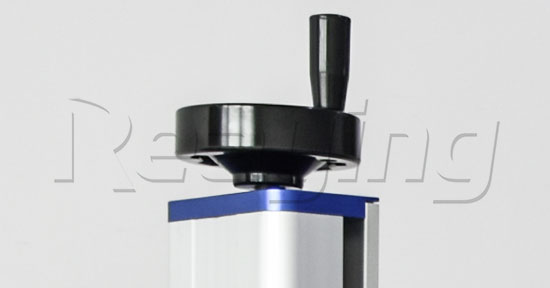

Lifting Wheel
Import high quality, easy to adjust.
High precision ruler.
Computer System
The control system is supported by Business computer-Industrial Computer. Which is reliable in quality, fast in speed and stable in performance.
CK 3D engraving software
1. The 3D operation interface of marking software, setting the switch between the front and the back of the datum plane, and simulating the marking content of the 3D coordinate axis can help users place the work piece and edit the marking graphics.
2. Precision control of the focal length position of marking machine, automatic adjustment of Z-axis range when 3D depth marking processing, keep the spot minimum, and ensure the consistency of graphics after marking.
3. Built-in concave-convex circular tube, concave-convex spherical surface, inclined surface, vertebral body, polygon and other basic models, so as to facilitate the operator to quickly set up marking.
4. Supporting the import of 3D models, 2D graphics can be directly covered on commonly used built-in surfaces, and 2D graphics can also be projected onto STL surfaces.
Free parts
u disk
Ruler
Foot switch
Power cable
key switch / laser switch
Technical Parameters
| Model | RY-F20A-3D |
|---|---|
| Laser power | 20W/30W/50W100W |
| Working Area | 110x110 mm |
| Laser Wavelength | 1064 nm |
| Laser module life | >100000hours |
| Warranty | 5 YEARS |

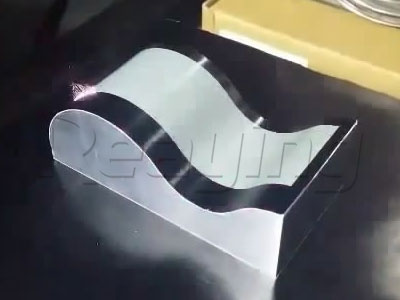

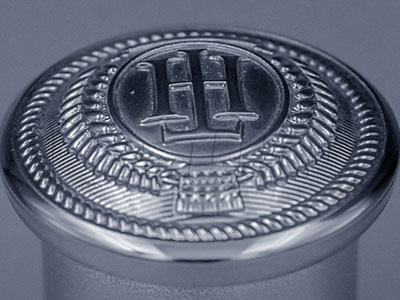

Application Scope & Applicable Materials

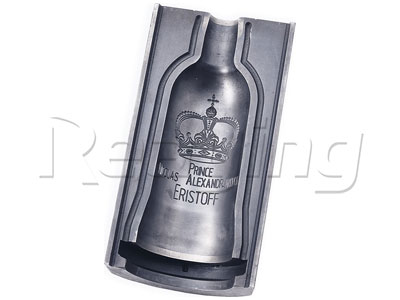

This 3D curve metal laser marking machine is widely used in mold industry, auto accessories, hardware crafts, electronic components, jewelry and daily metal products. It can mark stainless steel, carbon steel, aluminum alloy, copper, zinc alloy and most metal materials.
FAQ
What workpieces is this 3D marking machine suitable for?
It is mainly used for all kinds of curved parts, arc workpieces, inclined plane parts and irregular special-shaped metal pieces that ordinary flat marking machines cannot process well.
Is the operation difficult for new users?
No, the operation interface is concise and intuitive, equipped with detailed operation tutorials, workers can get started quickly without professional skills.
Does the machine support customized configuration?
Yes, different laser power, marking range and auxiliary accessories can be customized according to actual production requirements.
