sealed fiber laser marking and engraving machine detail

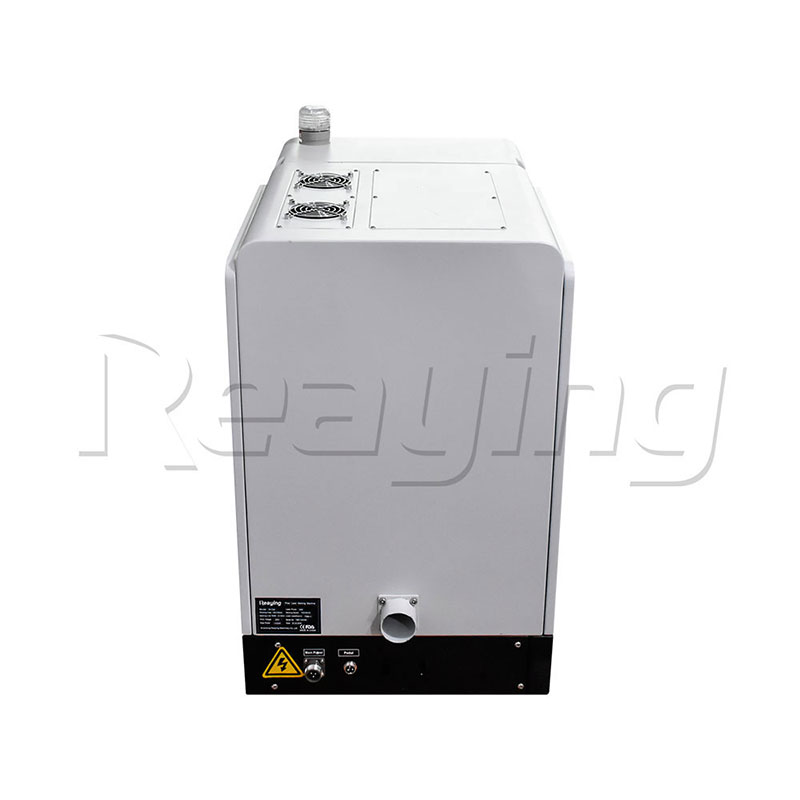

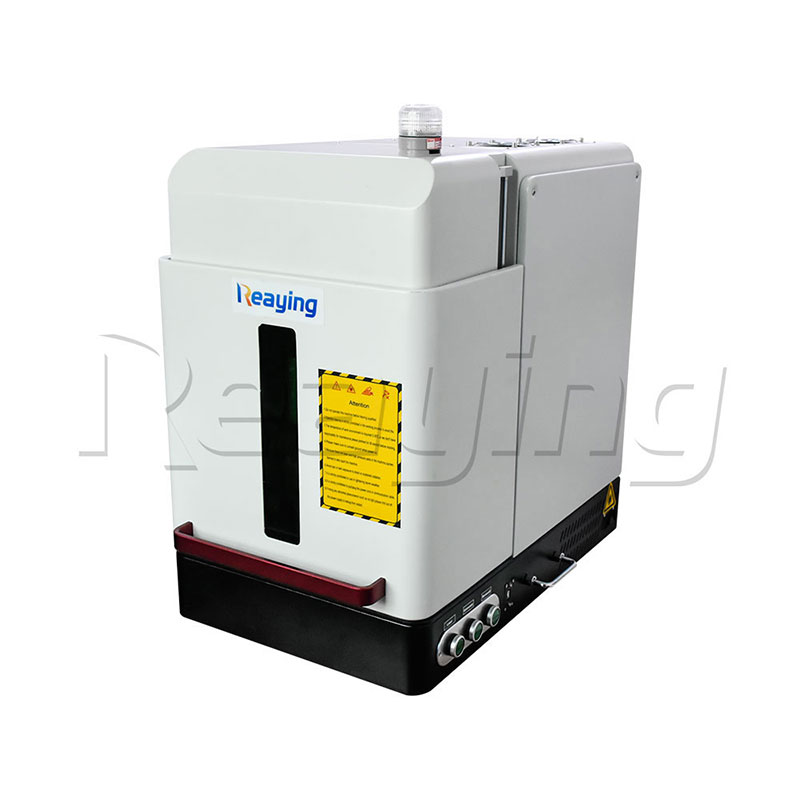

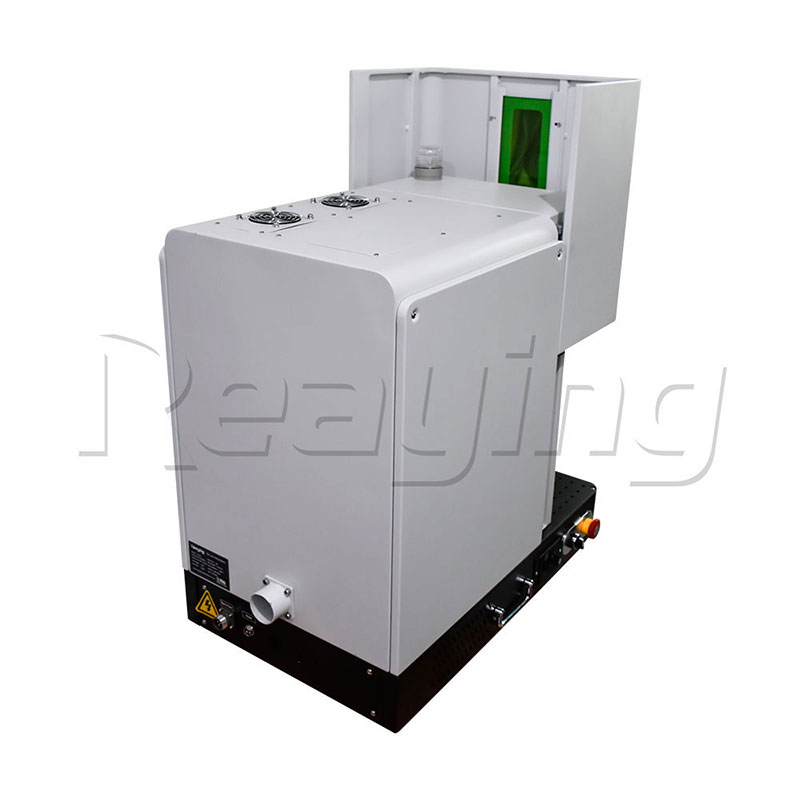

Sealed Fiber Laser Marking And Engraving Machine F20CS

Mini enclosed fiber laser marking machine is mainly composed of fiber laser, galvanometer, software control board, chassis cabinet, computer, workbench and other parts. Fiber laser marking uses laser light energy to burn off the surface material of the workpiece, thereby revealing the pattern and text to be etched. The maximum working area is 150x150mm.

Model:

RY-F20CS/RY-F30CS

Function:

Marking & Engraver & Cutting

Input Voltage:

110V/220V 50/60Hz

Laser Power:

20W / 30W

Laser Source:

Genuines Raycus

Working Area:

110x110mm

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail02-2

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail02-3

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail02-4

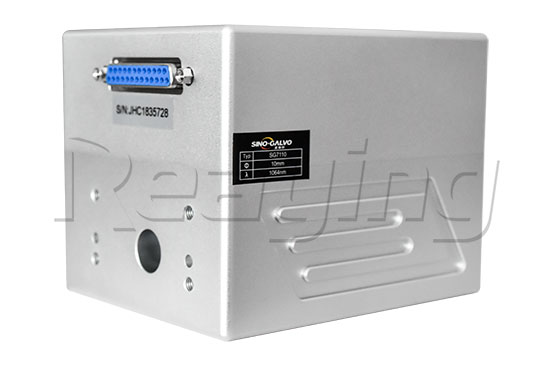

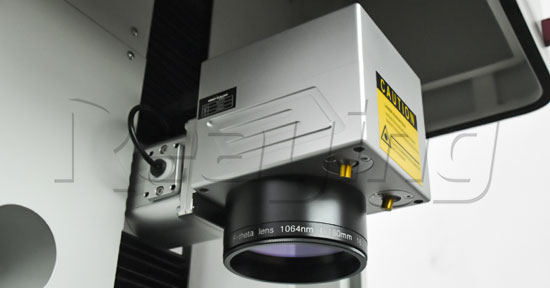

Galvo lens

Reaying fiber laser marker equipped with Sino-Galvo brand double red dots galvo scanner which has the characteristics of small volume, high precision, good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability and easy to find

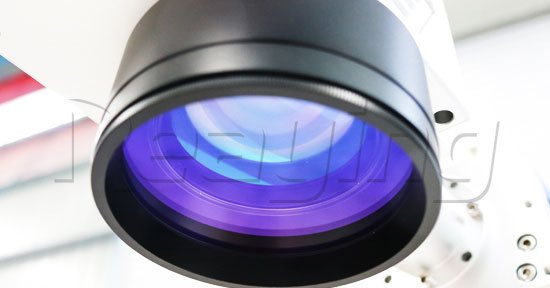

Filed lens

Compact size. Suitable for harsh environment, friendly interface.

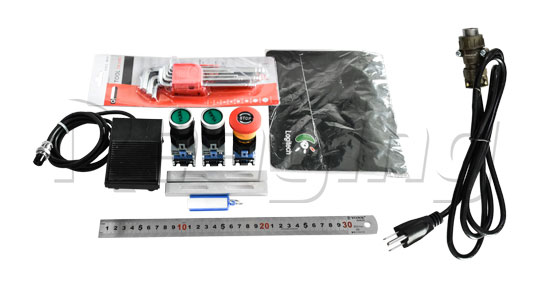

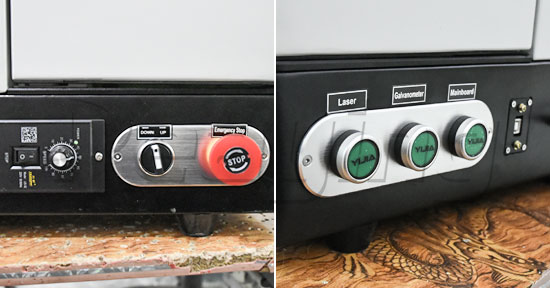

Control button

Humanized control system, easy to learn, safe and convenient, dust proof design.

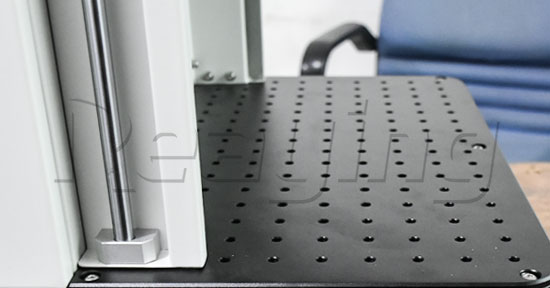

Working platform

Reaying fiber laser marker equipped with the work bench which has positioning hole and positioning bar, the operator can arbitrarily adjust the position of the workpiece to improve work efficiency

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail01-3

cnc-fiber-laser-marking-metal-engraving-machine-with-safety-enclosed-cover-detail01-4

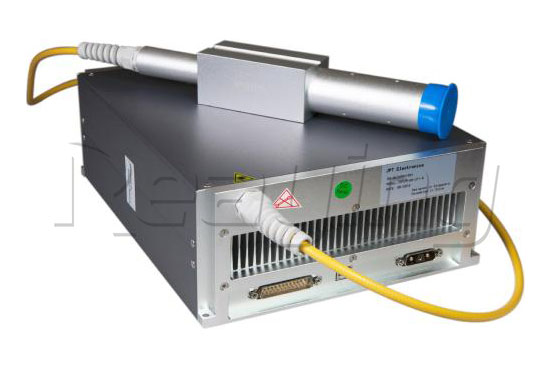

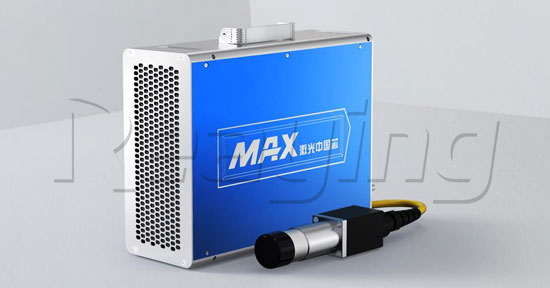

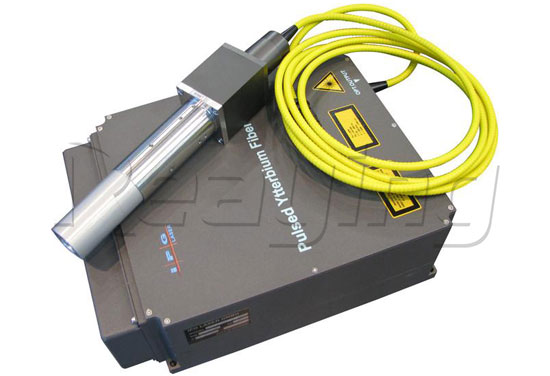

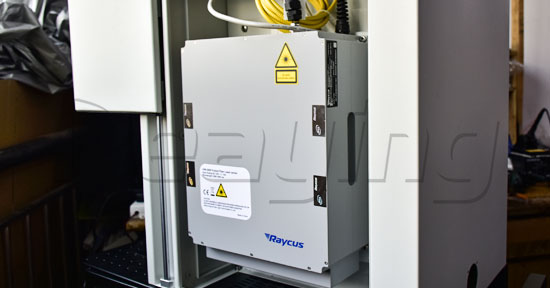

Laser source

100000 hours lifetime, Raycus/IPG/MAX optional

Eletric liftng, easier to move

Equipped with electric lifting and double red dots galvanometer, which makes it easier to find the focus length.

Optional computer system

If you need, the fiber laser will equipped with a Windows 7-32 bit system laptop which pre-installed with a free EZCAD control system. Or you can use your own PC, we will help you install the software and input our tested parameters. So we can ensure when you received the machine, you can plug and play.
